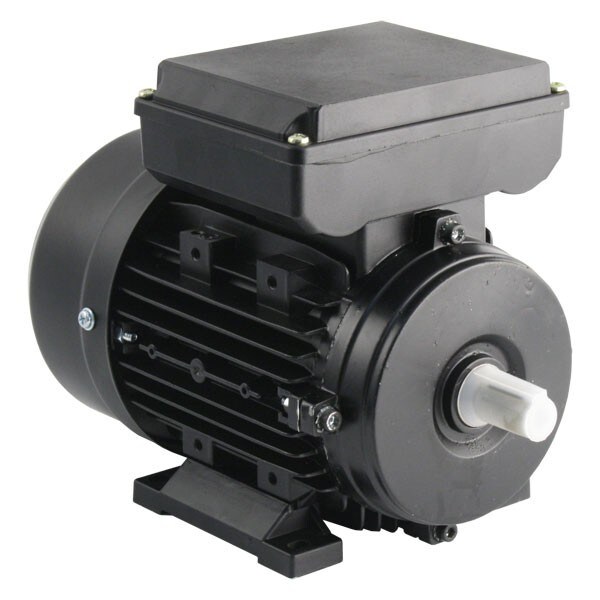

240 Single Phase Motor 1,5kW (2HP) Cap Start 4P 90L B3 Foot

INVERTEK 90L Frame - 1.5kW (2HP) Single Phase Capacitor Start/Run 4 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 240V x 50Hz for 1.5kW x 1400RPM.

High starting torque at 120%.
Full Load Current - 9.57A.
Starting Current is 55A.

Mounting is B3 Foot mounting.
Foot mount on 10mm holes at 140mm wide x 125mm centres 56mm back from shaft shoulder.
Shaft is 24mm dia x 50mm long with 8mm keyway.
Weight is 14.5kg

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
