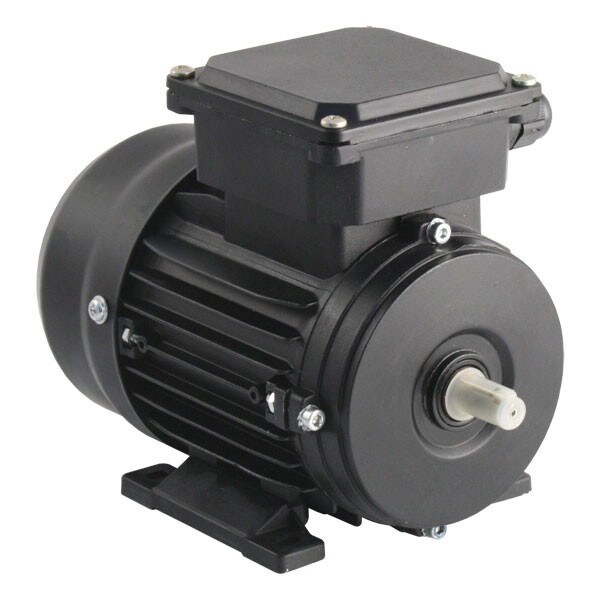

3kW (4HP) 4 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 100L/28

INVERTEK Alloy, IP55, Cl.F, Inverter Duty, Hi-EFF Electric Motor - 3kW 3ph 4 Pole High Efficiency Foot Mounting (B3) 100L Frame AC Motor for 240V or 415V 3 phase supply.  Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.



Fixed mains supply output: 3kW (4HP) x 1440RPM at 240V or 415V x 50Hz 3ph.
Inverter Supply Output: 20:1 Speed Control range from 144RPM to 2880RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 10.96A at 240V, or 6.33A at 415V.
Power Factor is 0.8 when mains connected at 50Hz.
Efficiency is 85.5%

198mm Wide x 387mm Long x 252mm high overall in its IP55 enclosure.
Foot mount on 10mm holes at 160mm wide x 140mm centres 63mm back from the shaft shoulder.
Shaft is 28mm dia x 60mm with 8mm wide key.
Weight is 26.4kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
Part number is - M34003003IMA

For the Technical:-
Part Time Output when Inverter powered is...
9.95Nm - 3kW ( 4.02HP) x 2880 RPM at 100 Hz
19.90Nm - 3kW ( 4.02HP) x 1440 RPM at 50 Hz
19.90Nm -1.5kW ( 2.01HP) x 720 RPM at 25 Hz
19.90Nm - 0.3kW (0.40HP) x 144 RPM at 5 Hz
Continuous Output when Inverter powered is...
14.2Nm -3kW ( 4.02HP) x 2016 RPM at 70 Hz
19.90Nm -3kW ( 4.02HP) x 1440 RPM at 50 Hz
16.92Nm - 1.28kW ( 1.71HP) x 720 RPM at 25 Hz
9.95Nm - 0.15kW (0.20HP) x 144 RPM at 5 Hz

Download the full Manual and Dimensions from the links below:-
