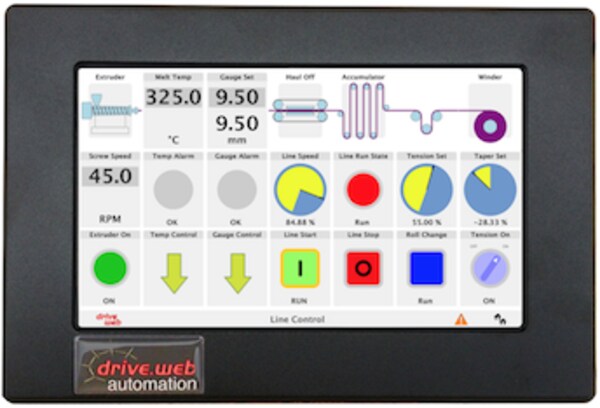

5" savvyPanel touch high resolution touch screen
Details
+
Details
+
savvyPanel Touchscreen Operator Stations - 5", 7", and 9.7"
Auto-connects to all drive.web drives, controllers, and devices on a local network.
Key Features:
- Plug & Play, drive.web native
- Competitively priced
- Easy setup
- Crisp, high visibility graphics
- IP65, NEMA 4 splash-proof front
- IP20 rear
- 1, Ethernet port 10/100baseTX
- Power supply 24VDC
- Working Temperature: -4°F to 158°F
Ethernet Networking Options:
- Connect directly to any single drive.web device
- Use with an Ethernet switch in systems to connect to multiple devices
Optional Enclosure:
- Impact resistant, flame retardant, polycarbonate industrial enclosure
- NEMA 4 (IP65), light gray
Model Info:
| Model Number | Screen Size | Screen Resoultion | Touchscreen Dimensions | Enclosure Dimensions |
| dw230-050 | 5" | 800 x 480p | 5.9” x 4.4” x 1.1” | 8.4” x 5.8” x 2.2” |
| dw230-070 | 7" | 1024 x 600p | 8.1” x 5.5” x 1.2” | 9.5” x 6.3” x 3.6” |
| dw230-097 | 9.7" | 1024 x 768p | 9.9” x 8.1” x 1.3” | 11.8” x 9.05” x 3.4” |
