Encoder 5-24Vdc 1024ppr 11mm 140Ø 2m Cable Line-Driver NPN, PNP, RS422 c/w 11mm magnetic hub & tolerance ring 63B5

Optimize the production process and avoid redesigning your machine with the integration of the MIG NOVA+; the flange encoder for ultra-precise positioning. The MIG incremental encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).

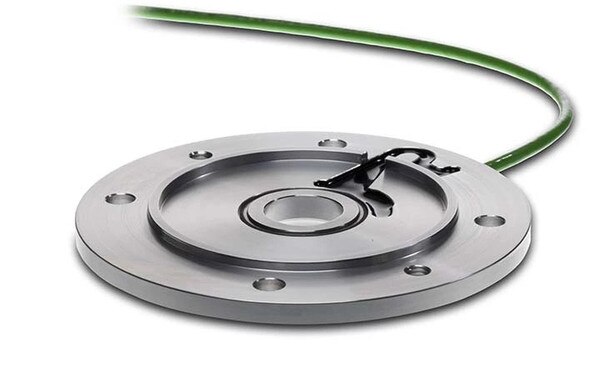

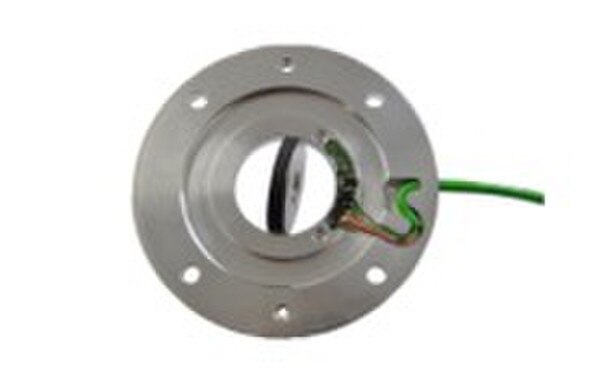

MIG NOVA+ INCREMENTAL ENCODER

TypeMN140-11-1024

Flange diameter (mm) Ø120

Shaft diameter Ø11

Flange thickness (mm) 7

Impulses 1024

Voltage (V) 5-24= (HTL, TTL)

Signal A 90 B, A' 90 'B

Cable length (M) 2, GREEN

WITH 11 mm MAGNET- AND TOLERANCE RING
