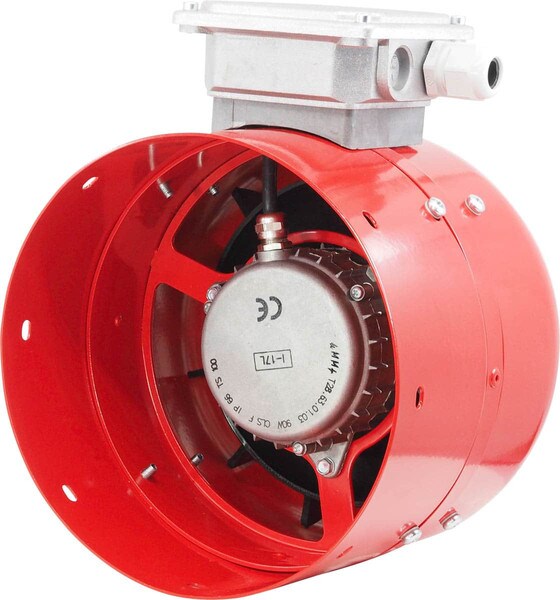

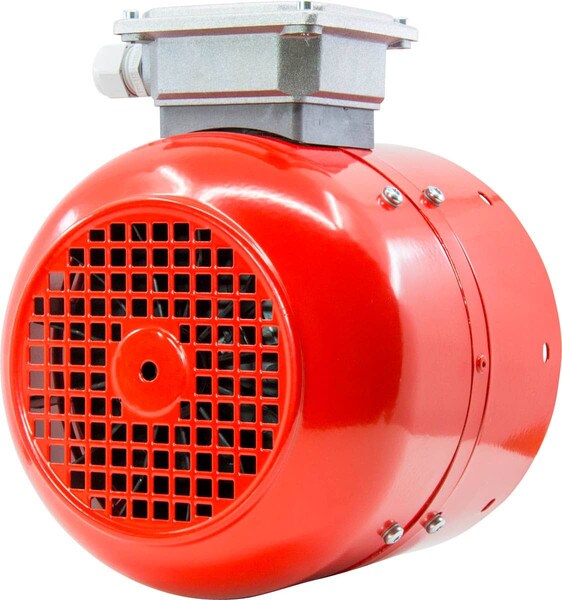

INVERTEK Forced Ventilation Unit Frame 100 IMA/IMPA

Forced Ventilation Unit IP66, suit frame 100 IMA / IMPA

Insulation: Class F
Az=192
Ah=192mm
B=233
C=110
D=123mm
Gr=5mm
X =92.5mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.64A, 2840 1/min.
207~333Vac D, 60Hz; 0.56A, 3360 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.66A / 0.38A; 2840 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.57A / 0.32A; 3360 1/min.
