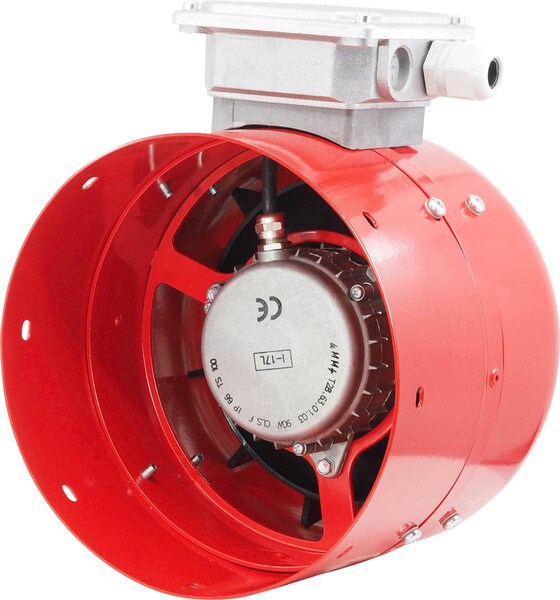

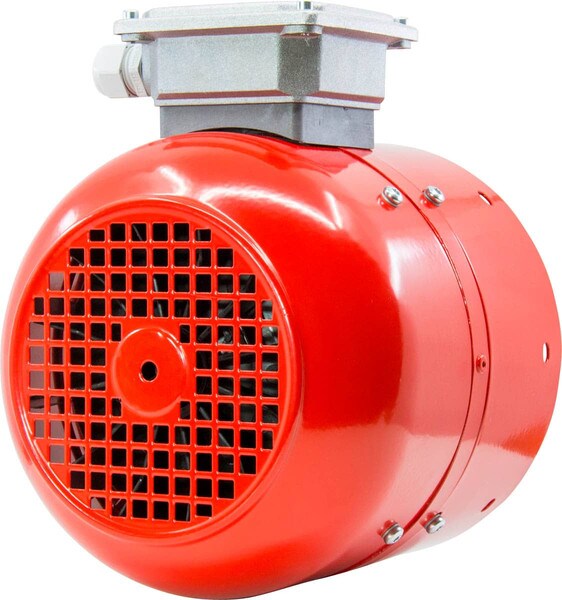

INVERTEK Forced Ventilation Unit Frame 160 IM/IMA/IMPA

Forced Ventilation Unit IP66, suit frame 160 IM/IMA/IMPA

Insulation: Class F
Motor T28.01.01, Lfl PA 275 (FZFLU160K275PA) Az=307
Ah=307mm
B=283
C=130
D=153mm
Gr=25mm
X=75mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.64A, 2781 1/min.
207~333Vac D, 60Hz; 0.57A, 3323 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.64A / 0.37A; 2819 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.56A / 0.32A; 3307 1/min.
