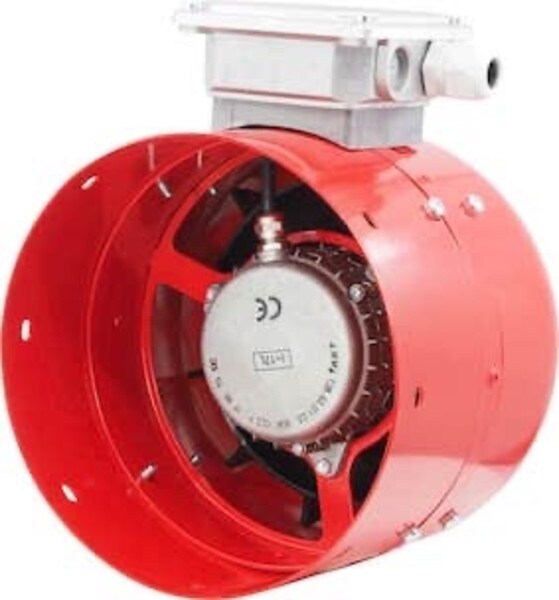

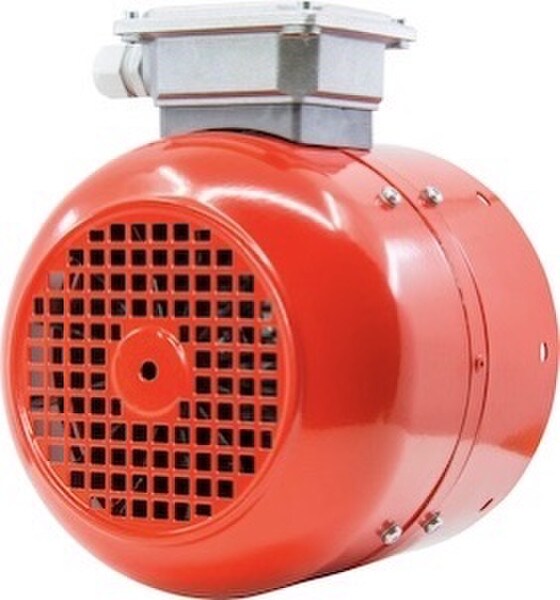

INVERTEK Forced Ventilation Unit Frame 180 IMP

Forced Ventilation Unit IP66, suit frame 180 IMP

Insulation: Class F
Motor T28.01.01, Lfl PA 300 (FZFLU160K300PA) Az=345
Ah=345mm
B=292
C=145
D=147mm
Gr=25mm
X=85mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.64A, 2741 1/min.
207~333Vac D, 60Hz; 0.60A, 3246 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.65A / 0.37A; 2777 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.59A / 0.34A; 3200 1/min.
