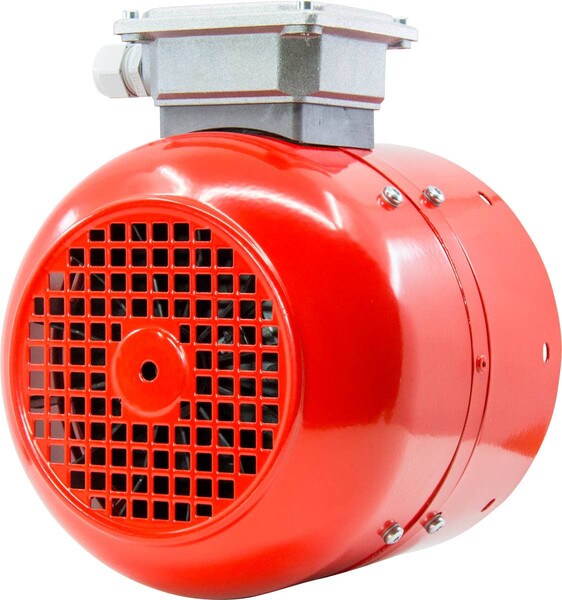

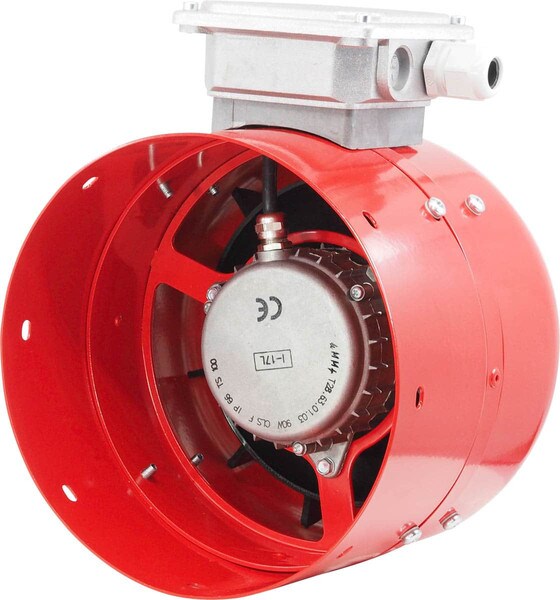

INVERTEK Forced Ventilation Unit Frame 71 IMA/IMPA

Forced Ventilation Unit IP66, suit frame 71 IMA / IMPA

Insulation cl.F,
Az=131
Ah=136mm
B=190
C=75
D=115mm,
Gr=5mm
X=68mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.70A, 2960 1/min.
207~333Vac D, 60Hz; 0.57A, 3580 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.71A / 0.41A; 2960 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.59A / 0.34A; 3580 1/min.
