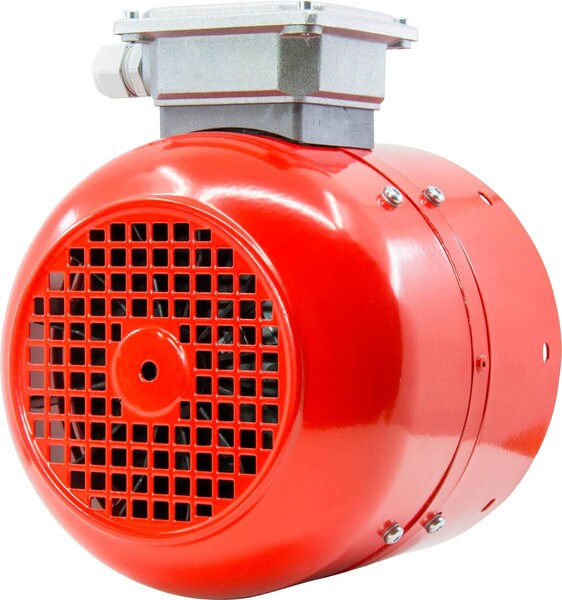

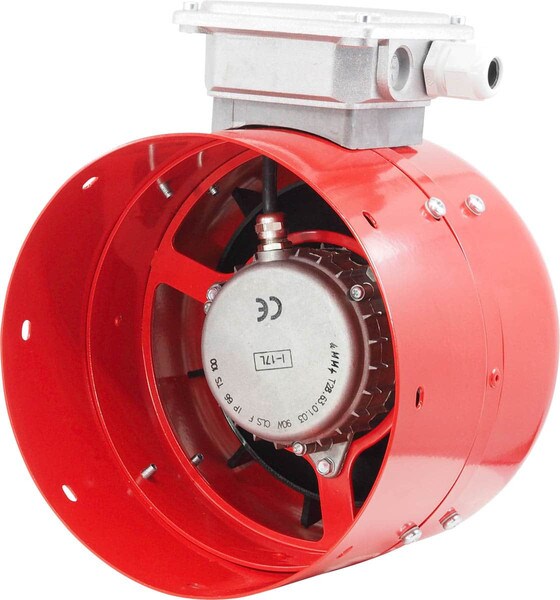

INVERTEK Forced Ventilation Unit IM/IMA

Forced Ventilation Unit IP66, Insulation cl.F, Motor T28.01.01, Lfl PA 300 (FZFLU160K300PA) Az=345 Ah=345mm B=292 C=145 D=147mm, Gr=25mm X=85mm with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz" 207~303Vac D, 50Hz; 0.64A, 2741 1/min. 207~333Vac D, 60Hz; 0.60A, 3246 1/min.and Three-Phase connection without capacitor 207~303Vac D / 360~525Vac Y, 50Hz; 0.65A / 0.37A; 2777 1/min. 207~333Vac D / 360~575Vac Y, 60Hz; 0.59A / 0.34A; 3200 1/min.
