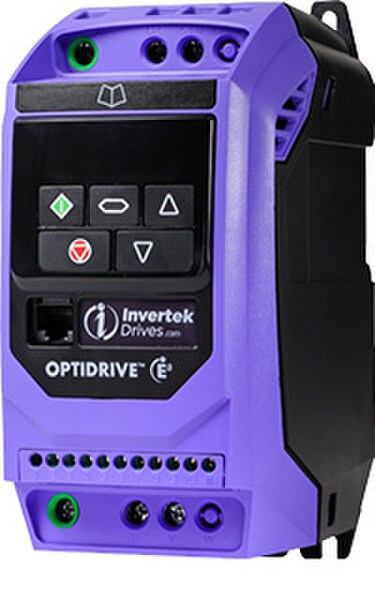

1.5 kW (2 HP), 4.1 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 5.6 A |
| Supply Fuse or MCB (Type B) | 10 A |
Output Ratings
| Motor Output Rating | 1.5 kW (2 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 4.1 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | No Internal Brake Transistor |
| Enclosure | IP20 |
Dimensions
| Size | 1 |
| Height | 173 mm (6.81 in) |
| Width | 83 mm (3.27 in) |
| Depth | 123 mm (4.84 in) |
| Weight | 1 kg (2.2 lbs) |
| Fixings | 4 x M5 |
Packaged Dimensions
| Height | 165 mm (6.5 in) |
| Width | 125 mm (4.92 in) |
| Depth | 235 mm (9.25 in) |
| Weight | 1.2 kg (2.65 lbs) |
