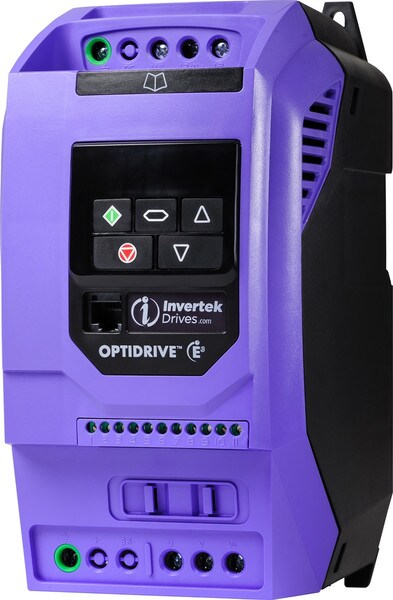

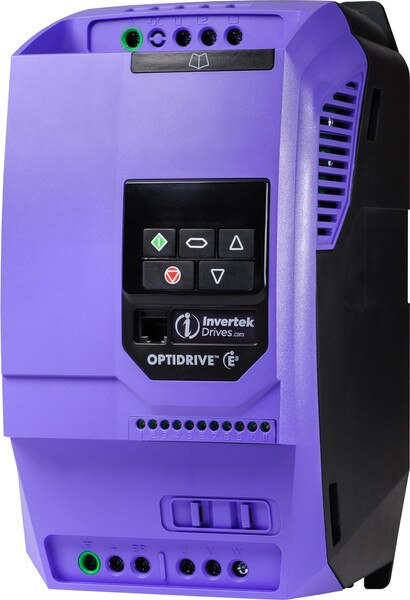

11 kW (15 HP), 24 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 27.5 A |
| Supply Fuse or MCB (Type B) | 40 A |
Output Ratings
| Motor Output Rating | 11 kW (15 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 24 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP20 |
Dimensions
| Size | 3 |
| Height | 261 mm (10.28 in) |
| Width | 131 mm (5.16 in) |
| Depth | 175 mm (6.89 in) |
| Weight | 3.2 kg (7.05 lbs) |
| Fixings | 4 x M5 |
Packaged Dimensions
| Height | 254 mm (10 in) |
| Width | 162 mm (6.38 in) |
| Depth | 315 mm (12.4 in) |
| Weight | 3.5 kg (7.72 lbs) |
Download the Invertek Optidrive E3 Manuals from the links below:-
