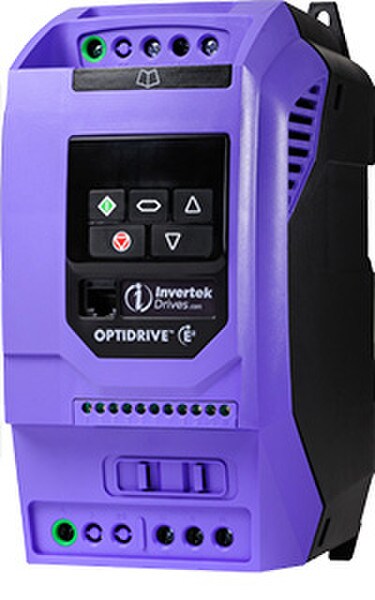

4 kW (5 HP), 9.5 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 11.5 A |
| Supply Fuse or MCB (Type B) | 16 A |
Output Ratings
| Motor Output Rating | 4 kW (5 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 9.5 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP20 |
Dimensions
| Size | 2 |
| Height | 221 mm (8.7 in) |
| Width | 110 mm (4.33 in) |
| Depth | 150 mm (5.91 in) |
| Weight | 1.7 kg (3.75 lbs) |
| Fixings | 4 x M5 |
Packaged Dimensions
| Height | 234 mm (9.21 in) |
| Width | 144 mm (5.67 in) |
| Depth | 260 mm (10.24 in) |
| Weight | 1.93 kg (4.25 lbs) |
