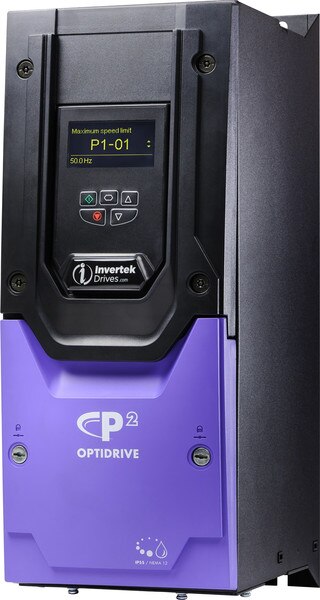

15 kW, 30 A, 380-480 V, 3PHIP55 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 37.2 A |
| Supply Fuse or MCB (Type B) | 50 A |
Output Ratings
| Motor Output Rating | 15 kW (20 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 30 A |
Cable Information
| Max Supply Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 4 |
| Height | 450 mm (17.72 in) |
| Width | 171 mm (6.73 in) |
| Depth | 252 mm (9.92 in) |
| Weight | 11.5 kg (25.35 lbs) |
| Fixings | 4 x M8 |
Packaged Dimensions
| Height | 510 mm (20.08 in) |
| Width | 240 mm (9.45 in) |
| Depth | 330 mm (12.99 in) |
| Weight | 13.2 kg (29.1 lbs) |
Download the Invertek Optidrive P2 Manual from the link below:-
