Power Supply 110/220VAC to 24VDC / 25W / 1.0A
Details
+
Details

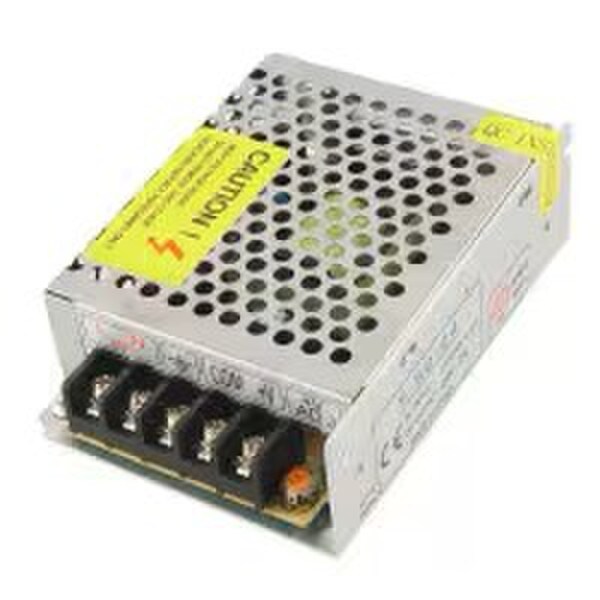

IDA Power Switch Mode Power Supply
THE IDA-S-25 series 25W single output AC to DC embedded switch mode power supply has an output current rating of 1A at 24VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 125VDC to 373VDC.
Note:
De-rating 2% per °C above 50°C
Features and Benefits
high-efficiency up to 86%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for single output types, 10.8V to 13.2V at 12V and 22V to 27.6V at 24V
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
Full load burn-in test
Specifications
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 1 A |
| Power Rating | 26W |
| Number of Outputs | 1 |
| Input Voltage | 125 → 373 V dc, 88 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 78mm |
| Width | 51mm |
| Depth | 28mm |
| Weight | 200g |
| Efficiency | 86% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
