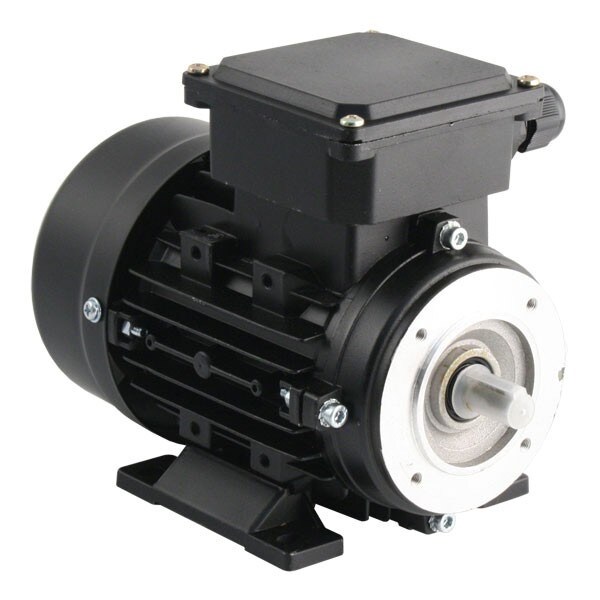

M32000186IMA | 0,18kW (0,25HP) 2 Pole AC Induction Motor 3ph 240V/415V B34 Foot & Face Mount - 63M2A/11

Fixed mains supply output:  0.18kW (0.25HP) x 2710RPM at 240V or 415V x 50Hz 3ph
Inverter Supply Output:  12:1 Speed Control range from 271RPM to 3250RPM, with suitable de-rating at the lower speeds.

Full Load Current - 0.95A at 240V, or 0.55A at 415V.
Power Factor is 0.75 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 240V 'Delta' connection.
Set terminal box links ‘two at one side’ for 415V 'Star' connection.

122mm Wide x 215mm Long x 173mm high overall in its IP55 enclosure.
Face mount on M5 tapped holes at 75mm pcd with 60mm dia spigot in the 90mm diameter flange.
Shaft is 11mm dia x 23mm with 4mm wide key.
Shaft side load is 25kg for 20,000hrs life (6201-2Z bearing)
Weight is 4kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - M32000186IMA

For the Technical…
Part Time Output when Inverter powered is...
0.53Nm - 0.18kW (0.25HP) x 3250RPM at 60Hz
0.63Nm - 0.18kW (0.25HP) x 2710RPM at 50Hz
0.63Nm - 0.09kW (0.12HP) x 1355RPM at 25Hz
0.63Nm - 0.018kW (0.025HP) x 271RPM at 5Hz

Continuous Output when Inverter powered is...
0.53Nm - 0.18kW (0.25HP) x 3250RPM at 60Hz
0.63Nm - 0.18kW (0.25HP) x 2710RPM at 50Hz
0.53Nm - 0.07kW (0.1HP) x 1355RPM at 25Hz
0.31Nm - 0.009kW (0.012HP) x 271RPM at 5Hz
