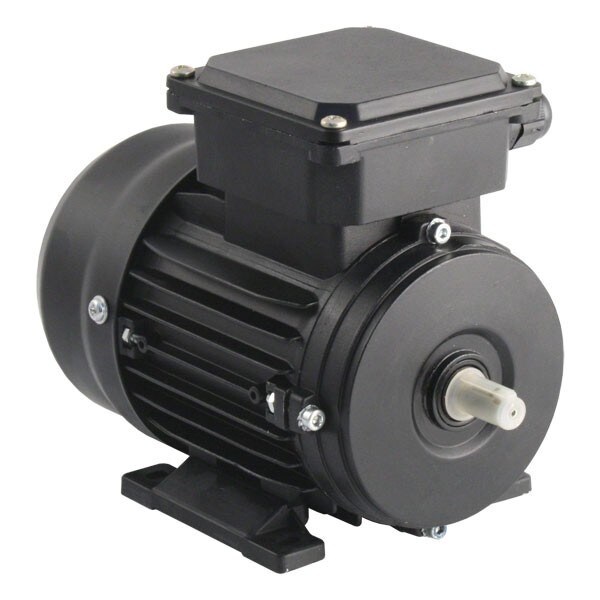

0,25kW (0,33HP) 4 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 63M4C/11
Details
+
Details
INVERTEK Electric 0.25kW 3ph 4 Pole Flange (B5) Mounting 63 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.
Fixed Mains Supply Output: 0.25kW (0.33HP) x 1350RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 20:1 Speed Control range from 135RPM to 2700RPM for 5Hz to 100Hz with suitable de-rating at the lower speeds (70Hz is the maximum continuous for maximum output, as advised by the Manufacturer).
Full Load Current - 1.59A at 230V, or 0.92A at 400V.
Power Factor is 0.67 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.
130mm Wide x 215mm Long x 173mm high overall in its IP55 enclosure.
Flange mount on 4 x 10mm holes equispaced on 115mm PCD with 95mm diameter spigot in the 140mm diameter flange.
Shaft is 11mm dia x 23mm with 4mm wide key.
Terminal box has 1 x M16 Gland.
Weight is 5kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor over-temperature protection is included.
For Variable Speed use:-
Part Time Output when Inverter powered is...
0.89Nm - 0.25kW (0.33HP) x 2700RPM at 100Hz
1.77Nm - 0.25kW (0.33HP) x 1350RPM at 50Hz
1.77Nm - 0.125kW (0.165HP) x 675RPM at 25Hz
1.77Nm - 0.025kW (0.033HP) x 135RPM at 5Hz
Continuous Output when Inverter powered is...
0.26Nm - 0.25kW (0.33HP) x 1890RPM at 70Hz
1.77Nm - 0.25kW (0.33HP) x 1350RPM at 50Hz
1.5Nm - 0.11kW (0.14HP) x 675RPM at 25Hz
0.88Nm - 0.012kW (0.016HP) x 135RPM at 5Hz
Extended Warranty Available: When a INVERTEK AC Motor is used with a INVERTEK Drive AC Inverter (see linked products below) the warranty period is 2 years (from despatch). Standard warranty is 1 year.
For the extended warranty to be valid the INVERTEK AC Inverter and INVERTEK Motor must be on the same order and used together when on site.
Download the Dimensions and Technical Catalogue from the links below:-
