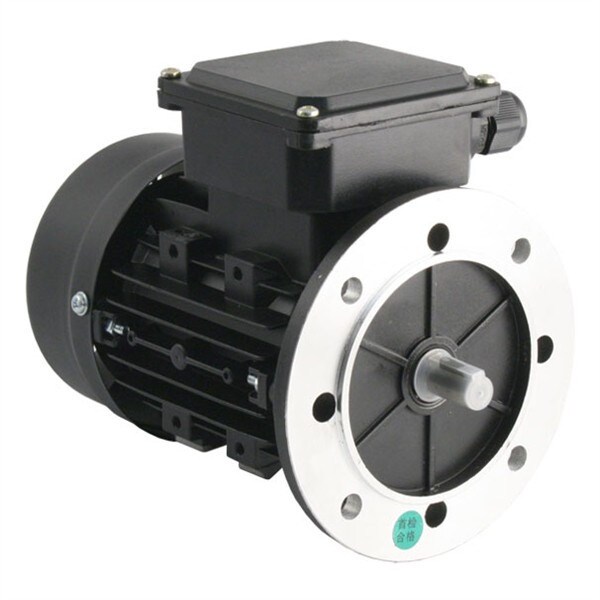

0,37kW (0,5HP) 2 Pole AC Induction Motor 3ph 240V/415V B5 Flange Mount - 71M2A/14

Fixed mains supply output: 0.37kW (0.5HP) x 2790RPM at 240V or 415V x 50Hz 3ph.
Inverter Supply Output: 15:1 Speed Control range from 279RPM to 4185RPM for 5Hz to 75Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 1.61A at 240V, or 0.93A at 415V.
Power Factor is 0.81 when mains connected at 50Hz.
Efficiency is 71%

136mm Wide x 245mm Long x 187mm high overall in its IP55 enclosure.

Flange mount on 4 x 10mm holes equispaced on 130mm PCD with 110mm diameter spigot in the 160mm diameter flange.
Shaft is 14mm dia x 30mm with 5mm wide key.
Weight is 8kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection is included.
Part number is - M32000375IMA

For the Technical:-
Part Time Output when Inverter powered is...
0.84Nm - 0.37kW (0.5HP) x 4185RPM at 75Hz
1.27Nm - 0.37kW (0.5HP) x 2790RPM at 50Hz
1.27Nm - 0.19kW (0.25HP) x 1395RPM at 25Hz
0.63Nm - 0.037kW (0.028) x 279RPM at 5Hz

Continuous Output when Inverter powered is...
0.84Nm - 0.37kW (0.5HP) x 4185RPM at 75Hz
1.27Nm - 0.37kW (0.5HP) x 2790RPM at 50Hz
1.08Nm - 0.16kW (0.21HP) x 1395RPM at 25Hz
0.63Nm - 0.019kW (0.028HP) x 279RPM at 5Hz

Download the full Manual and Dimensions from the link below:-
