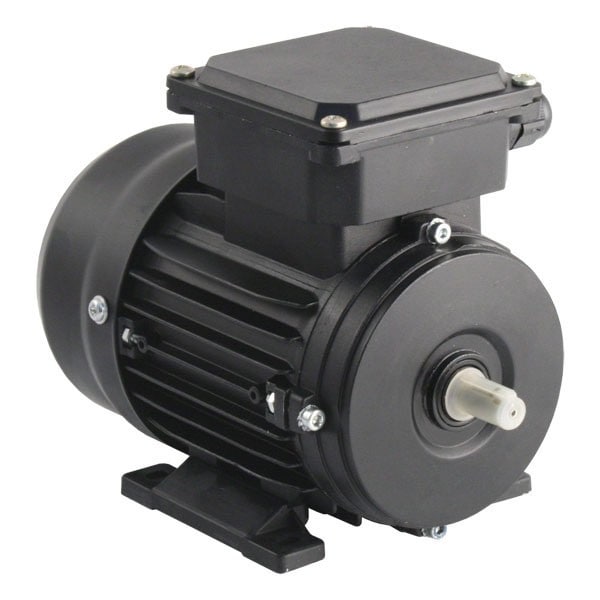

M32000553IMA | 0,55kW (0,75HP) 2 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 71/14

Fixed Main Supply output:  0.55kW (0.75HP) x 2760RPM at 240V or 415V x 50Hz 3ph.
Inverter Drive Supply Output:  12:1 Speed Control range from 276RPM to 3312RPM at 5Hz to 60Hz, with suitable de-rating at the lower speeds.

Full Load Current - 2.46A at 240V, or 1.42A at 415V.
Power Factor is 0.79 when mains connected at 50Hz.
Efficiency is 71%.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.

132mm Wide x 254mm Long x 188mm high overall in its IP55 enclosure.
Foot mount on 7mm holes at 112mm wide x 90mm centres 45mm back from shaft shoulder.
Shaft is 14mm dia x 30mm with 5mm wide key.
Weight is 6.1kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - M32000553IMA

For Variable Speed use...
Part Time Output when Inverter powered is...
1.58Nm - 0.55kW (0.75HP) x 3312RPM at 60Hz
1.9Nm - 0.55kW (0.75HP) x 2760RPM at 50Hz
1.9Nm - 0.275kW (0.375HP) x 1380RPM at 25Hz
1.9Nm - 0.055kW (0.075HP) x 276RPM at 5Hz

Continuous Output when Inverter powered is...
1.58Nm - 0.55kW (0.75HP) x 3312RPM at 60Hz
1.9Nm - 0.55kW (0.75HP) x 2760RPM at 50Hz
1.6Nm - 0.23kW (0.31HP) x 1380RPM at 25Hz
0.95Nm - 0.027kW (0.012HP) x 276RPM at 5Hz
