Encoder 5-24Vdc 1024ppr 14mm 105Ø Alum 2m Cable Line Driver NPN, PNP, RS422 c/w 14mm magnetic hub & tolerance ring 71B14A
Details
+
Details
+
Optimize the production process and avoid redesigning your machine with the integration of the MIG NOVA+; the flange encoder for ultra-precise positioning. The MIG incremental encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).

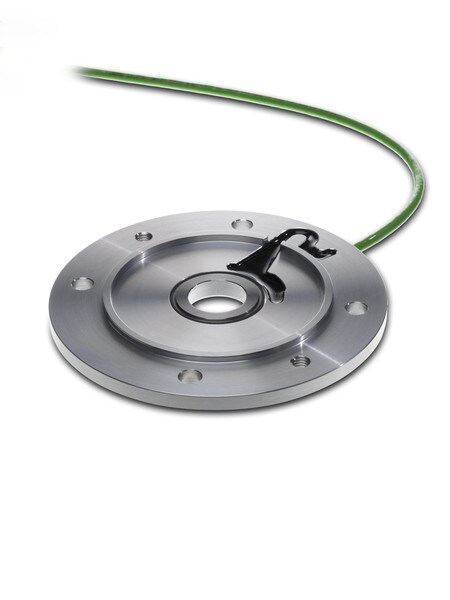

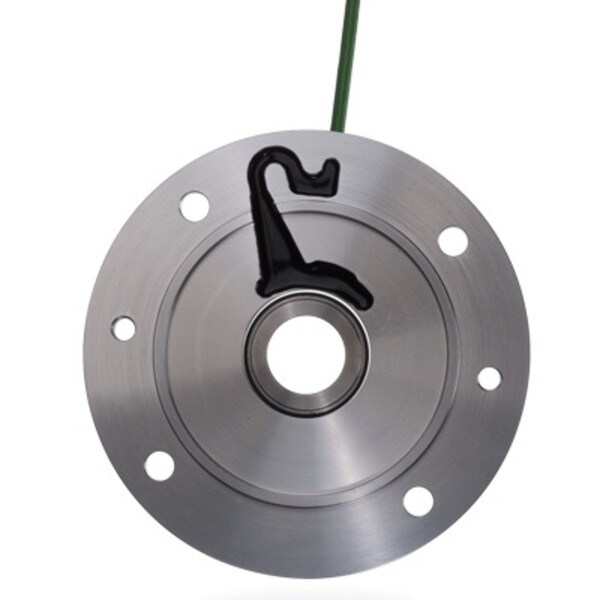

MIG NOVA+ INCREMENTAL ENCODER
TypeMN105-14-1024
Flange diameter (mm) Ø105
Shaft diameter Ø14
Flange thickness (mm) 7
Impulses 1024
Voltage (V) 5-24= (HTL, TTL)
Signal A 90 B, A' 90 'B
Cable length (M) 2, GREEN
WITH 14 mm MAGNET- AND TOLERANCE RING
