Encoder 5-24Vdc 1024ppr 19mm 120Ø Alum 2m Cable Line-Driver NPN, PNP, RS422, 80B14

Optimize the production process and avoid redesigning your machine with the integration of the MIG NOVA+; the flange encoder for ultra-precise positioning. The MIG incremental encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).

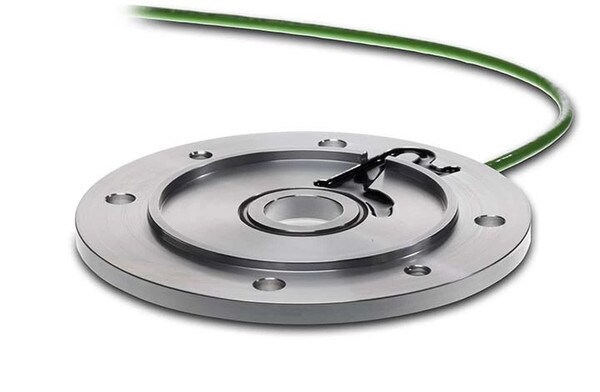

MIG NOVA+ INCREMENTAL ENCODER

Type: MN120-19-1024

Flange diameter (mm): Ø120

Shaft diameter:Ø19

Flange thickness (mm):7

Impulses: 1024

Voltage (V): 5-24= (HTL, TTL)

Signal A 90 B, A' 90 'B

Cable length (M): 2, GREEN

WITH 19 mm MAGNET- AND TOLERANCE RING
