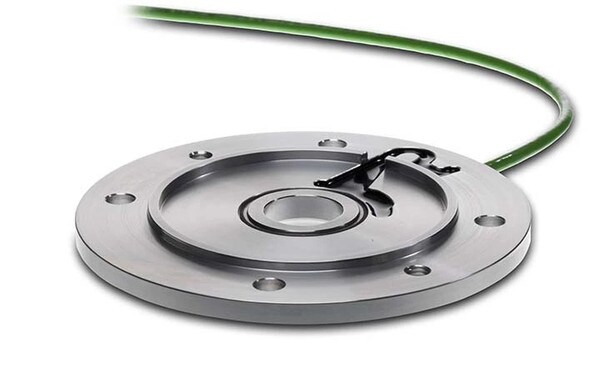

MIG NOVA+ incremental encoder Aluminium Flange: 200/165/130 | Bore: 19mm Impulse count: 1024 | AB/-A-B/90deg, HTL/TTL, 5-24 VDC, 2m cable IP55
Details
+
Details
+
Optimize the production process and avoid redesigning your machine with the integration of the MIG NOVA+; the flange encoder for ultra-precise positioning. The MIG incremental encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).
MIG NOVA+ INCREMENTAL ENCODER
TypeMN200-19-1024
Flange diameter (mm) Ø200
Shaft diameter Ø19
Flange thickness (mm)9
Impulses 1024
Voltage (V) 5-24= (HTL, TTL)
Signal A 90 B, A' 90 'B
Cable length (M) 2, GREEN
