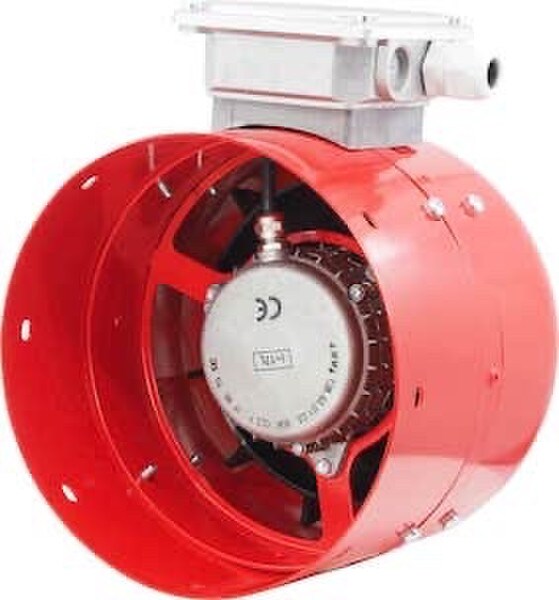

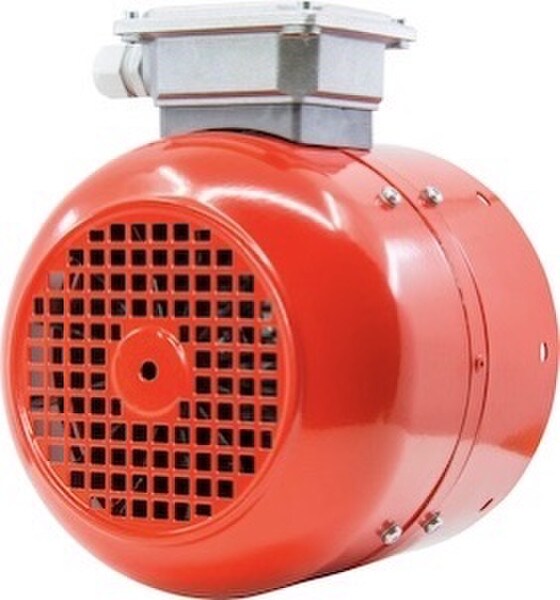

INVERTEK Forced Ventilation Unit IM/IMA/IMPA
Details
+
Details
+
Forced Ventilation Unit IP66, Insulation cl.F, Motor T28.01.01, Lfl PA 275 (FZFLU160K275PA) Az=307 Ah=307mm B=416 C=263 D=153mm, Gr=25mm X=75mm with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz" 207~303Vac D, 50Hz; 0.64A, 2781 1/min. 207~333Vac D, 60Hz; 0.57A, 3323 1/min.and Three-Phase connection without capacitor 207~303Vac D / 360~525Vac Y, 50Hz; 0.64A / 0.37A; 2819 1/min. 207~333Vac D / 360~575Vac Y, 60Hz; 0.56A / 0.32A; 3307 1/min.
