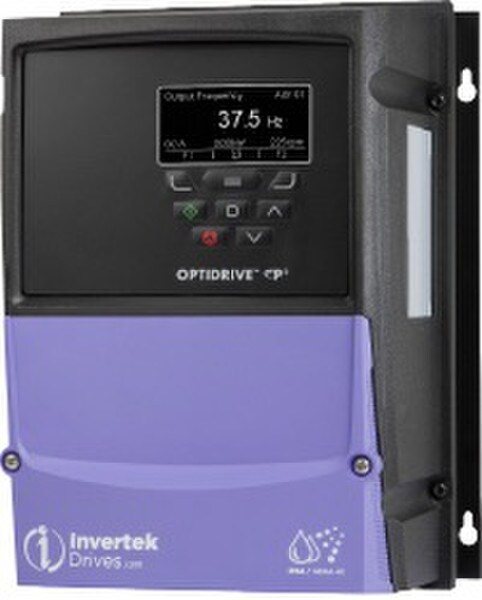

11 kW, 24 A, 380-480 V, 3PHIP66 Non Switched Outdoor Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V /SOLAR DC |
| Input Phases | 3 |
| Supply Current Continuous | 28.9 A |
| Supply Fuse or MCB (Type B) | 40 A |
Output Ratings
| Motor Output Rating | 11 kW (15 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 24 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP66 Non Switched Outdoor |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 3 |
| Height | 310 mm (12.2 in) |
| Width | 211 mm (8.31 in) |
| Depth | 225 mm (8.86 in) |
| Weight | 6.6 kg (14.55 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
i
| Height | 305 mm (12.01 in) |
| Width | 270 mm (10.63 in) |
| Depth | 440 mm (17.32 in) |
| Weight | 7.6 kg (16.76 lbs) |
