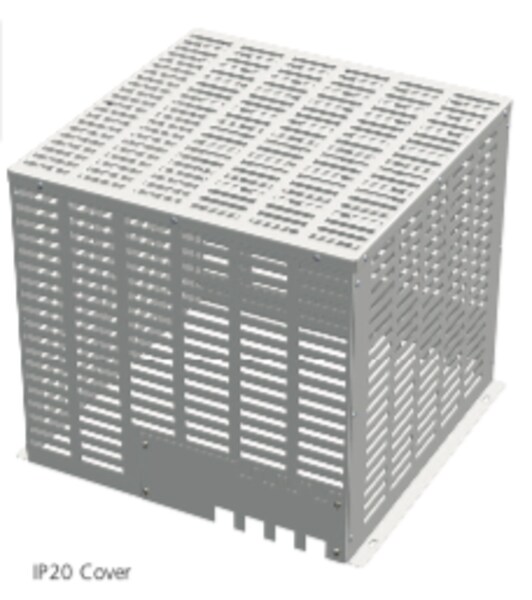

a new range of IP20 steel vented covers for industrial chokes. The growing demand for electrical chokes in industry has created the need for a fast, reliable and easy-to-assemble cover for speedy installations.

Chokes are fundamental for achieving high standards of power quality. When a current is generated it is not always uniform, which can lead to poor power quality. By using a choke, these excessive current frequencies can be filtered out. This filtering protects equipment from being damaged and increases the life span of products, increasing reliability and preventing hazardous situations.

When power is filtered by the choke, it dissipates the excess energy as heat. As such, the new range of steel covers must protect the choke, while also dissipating the heat effectively to prevent degradation of the choke’s functions. Due to the properties of steel, the IP20 steel vented cover is effective at quickly dissipating heat in high-temperature environments.

“Our customers increasingly demand choke covers that are faster and easier to assemble, while also allowing for flexibility in where they can be located,”. “To answer this problem, we developed the new IP20 steel vented cover. Even though it has been made for fast assembly, it still maintains the high levels of heat dissipation required by our high standards.”

The IP20 steel vented cover is purpose built for use alongside CNW 903, CNW 933 and CNW 905 mains chokes, as well as CNW 854 motor chokes. The cover has been manufactured in eight different sizes, to suit a variety of electrical applications.

With an ingress protection rating of IP20, the cover can block any physical material, such as debris larger than 12mm, from entering the caged area. A range of mounts to secure the cover is also available, should an engineer wish to position the cover onto the outside of a switch board.

for the protection class IP 20

CNW 933 / 16
CNW 933 / 20
CNW 933 / 24
CNW 806 / 90
CNW 854 / 48
CNW 854 / 60
CNW 854 / 75
CNW 854 / 90
CNW 903 / 25
CNW 903 / 36
CNW 903 / 50
CNW 905 / 36
CNW 905 / 50
CNW 906 / 36
CNW 906 / 50
