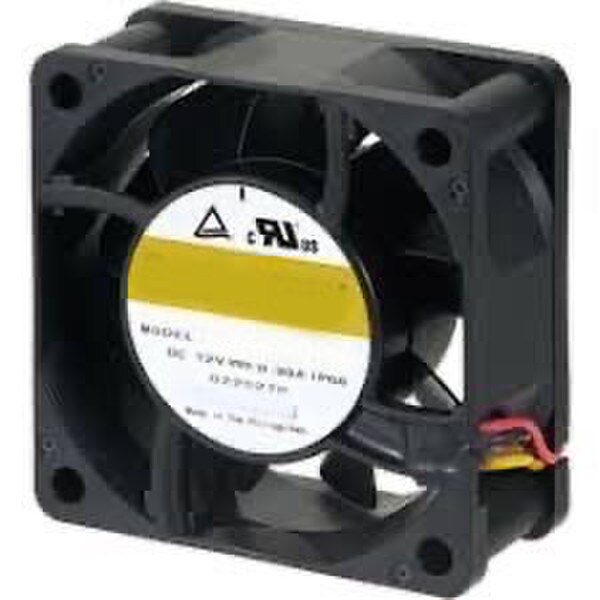

Cooling Fan, E3/V3/P2, IP68, Outdoor Models A/B, S2/S3/S4, 60mm, 12V, 485mm lead
Details
+
Details
Splash Proof Fan
■Features
High Airflow and High Static Pressure
This fan delivers a maximum airflow of 1.52 m3/min and a maximum static pressure
of 357 Pa.
Compared with the current models,(1) the maximum airflow has increased by 2 times
and maximum static pressure has increased by 4 times.
Water and Dust Resistance
These fans have IP68-rated(2) water and dust protection. They maintain stable
operation even in harsh environments.
Low Noise and High Energy Efficiency
The PWM control function enables the control of fan speed, contributing to lowering
noise and improving energy efficiency of devices.
(1) Size: 60 × 60 × 25 mm DC Fan
(2) The degree of protection (IP code) is defined by IEC 60529 (International Electrotechnical Commission).
IP68:
Completely protected against dust
Protected against submersion in water
IPX8 Requirements
When the power is off, the fan is submerged in water pressurized to the equivalent of 2 meters for 60 minutes. Then it's run for 15 minutes at the rated voltage in free-air. During the test, there shall be no reduction in dielectric strength or fan characteristics.
■Common Specifications
□Material Plastic: (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
□Expected life: Refer to specifications:
(L10 life: 90% survival rate for continuous operation in indoor free air at 60°C, rated voltage)
Expected life at 40°C is for reference only.
□Motor protection function: Locked rotor burnout protection, Reverse polarity protection
□Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
□Insulation resistance: 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
□Sound pressure level (SPL): At 1 m away from the air inlet
□Operating temperature: Refer to specifications (Non-condensing)
□Storage temperature: -30 to +70°C (Non-condensing)
□Lead wire Frame:＋Red○ーBlack Sensor Yellow Control Brown
□Mass: 110 g
□Ingress protection:IP68
