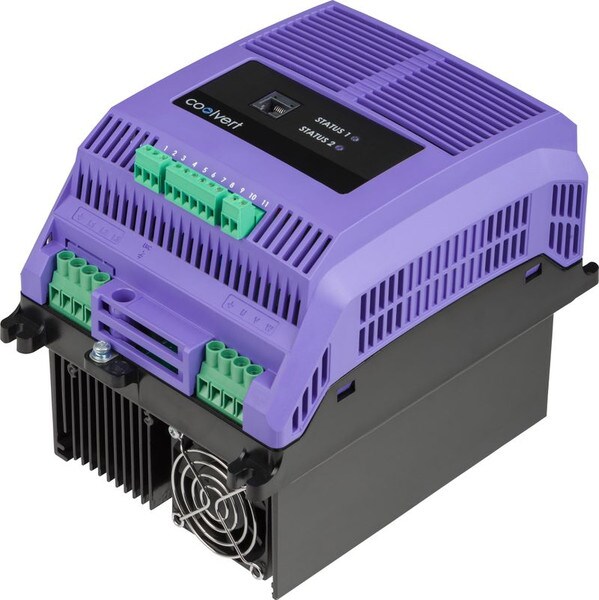

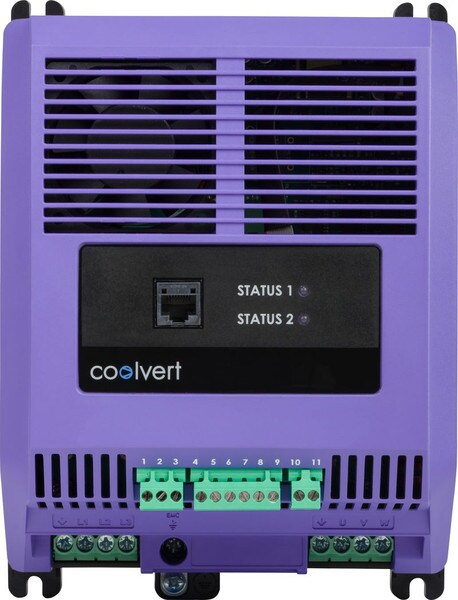

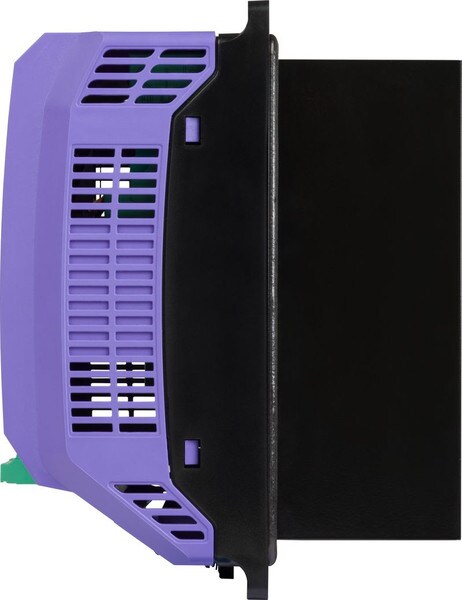

COOLVERT 7A 240V HEATSINK

(0)No Reviews yet

$1,314.00

Quantity	Price

SKU: CV-220070-1FHP

5 Available

Pickup in Store - FREE!

Select Store to check availability.

This item is IN STOCK

Quantity Available: 5

Quantity

Optidrive Coolvert Specification

	kW	HP	Amps	Size	Product Family		Frame Size	Voltage Code	Power Rating Code		Number of Input Phases	EMC Filter	Heatsink/Coldplate	Power Technology
200 – 240V ± 10% 1 Phase Input	1.5	2	7.0	2	CV	-	2	2	0070	-	1	F	#	P
	3	4	12	2	CV	-	2	2	0120	-	1	F	#	P
	4	5.5	16.0	2	CV	-	2	2	0160	-	1	F	#	P
	5.5	7.5	20.0	2	CV	-	2	2	0200	-	1	F	#	P
380 – 480V ± 10% 3 Phase Input	5.5	7.5	14	2	CV	-	2	4	0140	-	3	F	#	E
	7.5	10	18	2	CV	-	2	4	0180	-	3	F	#	E
	11	15	24	2	CV	-	2	4	0240	-	3	F	#	E
	15	20	30	3	CV	-	3	4	0300	-	3	F	#	E
	18.5	25	39	3	CV	-	3	4	0390	-	3	F	#	E
	22	30	46	4	CV	-	4	4	0460	-	3	F	#	E
	30	40	58	4	CV	-	4	4	0580	-	3	F	#	E

NOTE: The Heatsink Version can be conventionally mounted on the backplate of a panel using the optional panel mounting kit (sold separately)

		A		B		C		D		E		F		G		H		J
		mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
Size 2		226.3	8.9	215.2	8.5	201.4	7.9	165.3	6.5	90	3.5	37.7	1.48	113.9	4.48	104.4	4.11	9.5	0.37

Ambient Conditions	Temperature	Storage: −40 to 70°C Operating: −20 to 60°C
	Altitude	Up to 1000m ASL without derating Up to 2000m maximum UL approved Up to 4000m maximum (non UL)
	Humidity	95% Max, non condensing
	Vibration	Conforms to EN61800-5-1

Enclosure	Ingress Protection (IP)	Front IP20 Rear (Through Panel Mounting) IP55
Enclosure	Coated PCBs	Designed for operation in 3S2/3C2 environments according to IEC 60721-3-3

Programming	Modbus RTU (RS485)	Modbus RTU on Pluggable terminals and through RJ45 port
	PC Tools	PC Tools software for Diagnostics and parameter configuration (RJ45 port only)
	Keypad	Optional Remote Keypad with TFT display for diagnostic and programming
	Smartphone app	Optitools Mobile

Control Specification	Control Method	200 – 240V ± 10% 380 – 480V ± 10%
	PWM Frequency	4 – 32kHz
	Stopping Mode	Ramp to stop, Coast to stop
	Skip Frequency	2 skip frequencies, user adjustable
	Control Modes	Modbus RTU (RS485) Terminal Control Digital / Analogue Terminal Control PI mode Master / Slave Mode

Application Features	PI Control	Internal PI Controller
	Demagnetisation Protection	Configurable over-current trip threshold for greater protection against demagnetisation of the motor
	Start-up Profile	Three stage configurable start-up profile to ensure lubrication and increased compressor lifetime
	Start/Stop Blocking Features	Configurable Minimum On Time, Minimum off Time and Minimum Re-Start Delay to reduce oil migration and maximise compressor lifetime
	Serial Communications Loss Fall-Back Speed	The ability to configure the drive to run at a ‘safe’ speed in the even of a loss of serial communication. Can prevent total loss of operation whilst maintaining minimum process demands

Maintenance & Diagnostics	Fault Memory	Last 3 trips stored with time stamp
	Data Logging	Logging of data prior to trip for diagnostic purposes: Output Current Drive Temperature DC Bus Voltage
	Monitoring	Hours Run Meter kWH

Conformance	The Coolvert product range conforms to the relevant safety provisions of the following council directives: 2014/30/EU (EMC), 2014/35/EU (LVD), 2006/42/EC (Machinery Directive), 2011/65/EU (RoHS 2) and 2009/125/EC (Eco-design)
	Design and manufacture is in accordance with the following harmonised European standards:
	BSEN 61800-5-1: 2007 & A1: 2017	Adjustable speed electrical power drive systems. Safety requirements. Electrical, thermal and energy.
	BSEN 61800-3:2018	Adjustable speed electrical power drive systems. Part 3: EMC requirements and specific test methods (IEC 61800-3:2017).
	BSEN 61800-9-2:2017	Adjustable speed electrical power drive systems. Part 9-2: Ecodesign for power drive systems, motor starters, power electronics and their driven applications – Energy efficiency indicators for power drive systems and motor starters (IEC 61800-9-2:2017).
	BSEN 60529: 1992 & A2: 2013	Specifications for degrees of protection provided by enclosures
	UL 61800-5-1	cUL Listed * cUR Recognised for the coldplate variants *
	BSEN 61000-3-12: 2011	Electromagnetic compatibility (EMC) - Part 3-12: Limits - Limits for harmonic currents produced by equipment connected to public low voltage systems with input current >16 A and ≤ 75 A per phase
	BSEN 61000-3-2:2019 (single phase input variants only)	Electromagnetic compatibility (EMC).Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase)
