Encoder 5-24Vdc 20ppr 24mm 200Ø Alum 2m Cable 90B5
Details
+
Details
+
Optimize the production process and avoid redesigning your machine with the integration of the MIG NOVA+; the flange encoder for ultra-precise positioning. The MIG incremental encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).

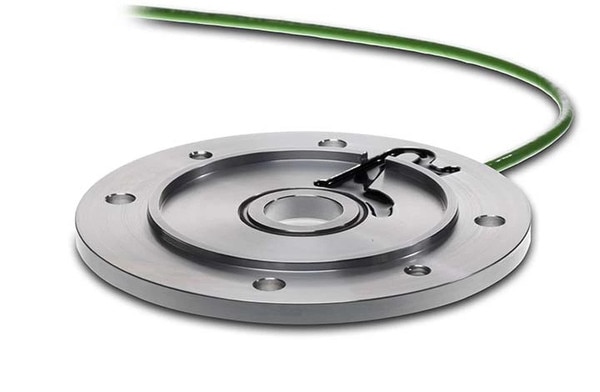

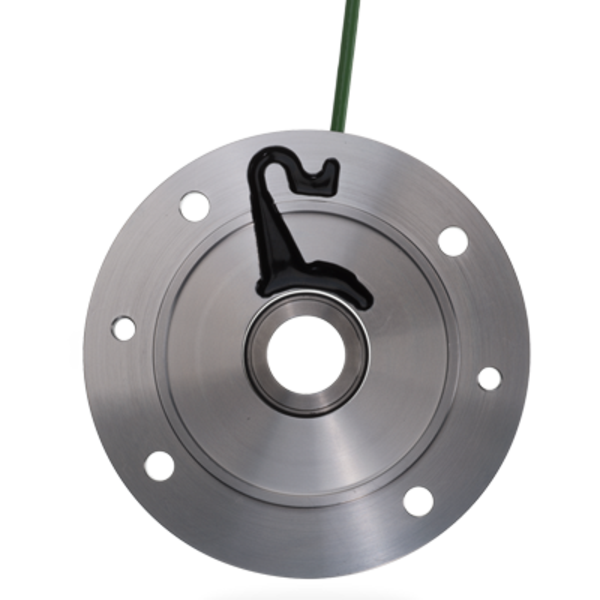

MIG NOVA+ INCREMENTAL ENCODER
TypeMN200-24-0020
Flange diameter (mm) Ø200
Shaft diameter Ø24
Flange thickness (mm) 9
Impulses 20
Voltage (V) 5-24= (HTL, TTL)
Signal A 90 B, A' 90 'B
Cable length (M) 2, GREEN
WITH 24 mm MAGNET- AND TOLERANCE RING
