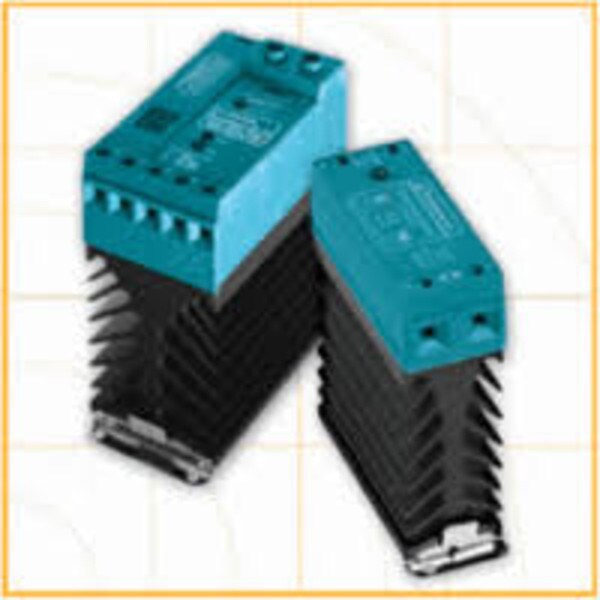

Eurotherm 50A 48-660VAC 1ph Solid State Contactor, AC Input Logic (90-280VAC)

(0)No Reviews yet
$576.00
SKU: RSAA-50A-660V-HAC

4 Available

Select Store to check availability.

This item is IN STOCK

Quantity Available: 4

Details


Features
  • 25-100 amps, 500Vac max.
  • DIN rail or panel mounting
  • Integral heatsink design
  • LED input and fault indicators
  • Internal I2t fusing (Ž50 amps)
  • DC and AC input versions
  • Zero switching
  • Finger safe



TECHNICAL SPECIFICATIONS

Dimensions (mm) :25A:87H x 30W x 100D
32A:87H x 60W x 100D
50A:126H x 61W x 128D
75A:126H x 90W x 128D
100A:126H x 120W x 128D
Mounting :Panel or symmetrical DIN rail
Inputs:RSDA–DC Input
Low voltage DC Logic (LDC) :ON >4V/6mA, 28Vdc/9mA
OFF <1V
High voltage DC Logic (HDC):ON >20V/7mA, 30Vdc/14mA
OFF <1V
RSAA–AC Input
AC Logic:ON >100V/9mA, 280Vac/25mA
OFF <20V
Input impedance :40kž
Load type :Resistive
Firing mode–Logic :Zero crossing switching
Operating temperature:0ºC to 40ºC (up to 80ºC with derating)
