Head and potentiometer 10kΩ
Details
+
Details
+
Potentiometer - Harmony XB4 Range
Providing linear mode precision in a familiar package size that fits the Harmony XB4 range of products are Schneider Electrics Range of panel mount potentiometers. The Harmony XB4 range of potentiometers is a type of variable resistor that enables users to regulate and change current flowing through a circuit.
Features & Benefits
- Commonly referred to as "pots" or "potmeters"
- Screw terminals
- 22mm panel cut-out
- The bezels are comprised of chromium-plated metal
- Featuring an IP rating of IP66 - this means that each potentiometer within this range is totally dust-tight, no dust can get into the electronics or the shaft this IP rating also means that the item has protection against direct high-pressure jets
- Compatible with a Ø 6mm shaft
- Complete and ready to use
- Mechanically durable for up to 50000 cycles
- Each potentiometer features a knurled knob with white markings
- Standards - EN/IEC 60947-1, UL 508 and CSA C22.2 No 14
- Comprised of cermet
How do Potentiometers work?
A potentiometer works through the two terminals that they feature, they are fixed to a resistive element or what we may refer to as a track. A third terminal is connected to the wiper, which is a sliding contact. As the wiper moves along the track, the resistance changes and the current that is flowing through the circuit changes.

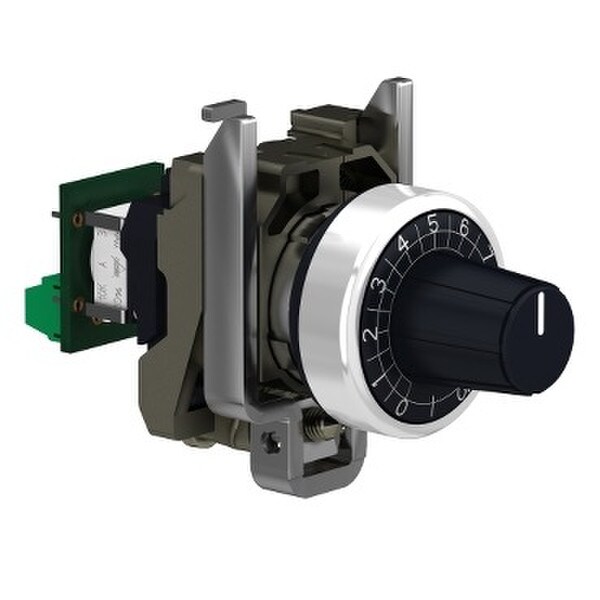

Schneider Electric Rotary Potentiometer - XB4BD912R10K
- Overall dimensions - W30 x H47 x D82 mm
- Has an ohmic value of 10000 Ohm
- Rated power is 1 W 70 °C
- Features a rated supply voltage of <= 30 V AC and <= 42 V DC
- Rotary potentiometer type
