Input Choke; 10A, 400V 3ph, IP20
Details
+
Details
+

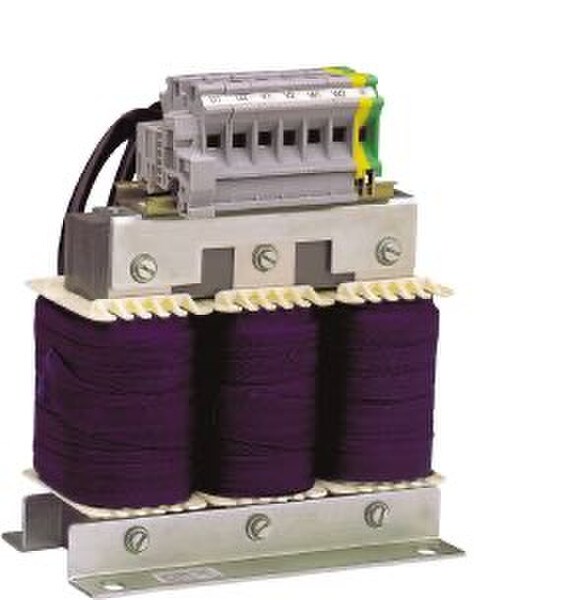

Three Phase AC Input Choke to 10A.
Connect directly to the mains input of a 3ph AC Inverter to reduce harmonic current current or RMS load
Current Rating: 10A.
Voltage: 500V 3 phase +-10%.
Inductance: 2.9mH.
Protection: IP20.
Weight: 2.5kg.
Dimensions: : 125mm Length x 71mm Width x 127mm Height.
Mounting: via 5mm x 8mm slots at 100mm x 55mm centres.
Connection: Top mounted terminals for up to 2.5mm² cable.
Part Number: CNW903/10.
Also known as Mains Choke, Line Reactor, AC Choke, AC Inductor or Input Choke, AC Line Choke; 10A, 400V 3ph, IP20, 4% Line Impedance, OPT-2-L3010-20
