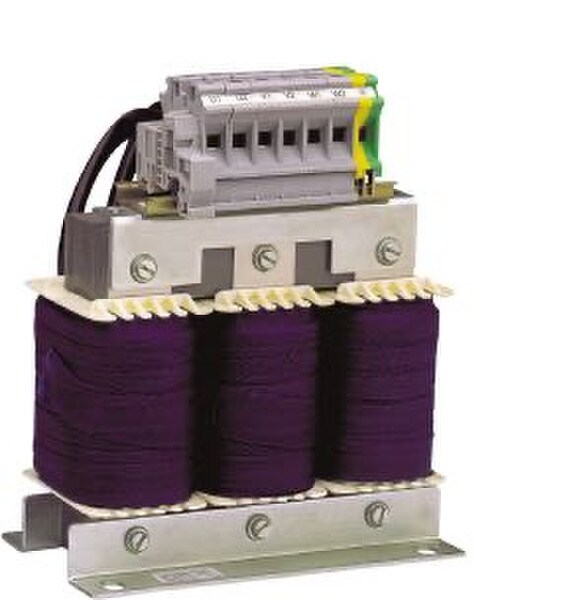

Input Choke; 90A, 400V 3ph, IP20

Three Phase AC Input Choke to 90A. Provides 4% line impedance.
For use with a 400V 3 phase AC Inverter to reduce harmonic current or RMS load.

Current Rating: 90A.
Voltage: up to 500V 3 phase ±10%.
Inductance per phase: 0.32mH.
Protection: IP20.
Weight: 16kg.

Dimensions: 240mm Length x 107mm Width x 280mm Height.
Mounting: via 10mm x 18mm slots at 185mm x 85mm centres.
Connections: Top mounted terminals suitable for up to 35mm² cable.

Part Number: CNW903/90.

Also know as Mains Choke, Line Reactor, AC Choke, AC Inductor and Input Choke.
