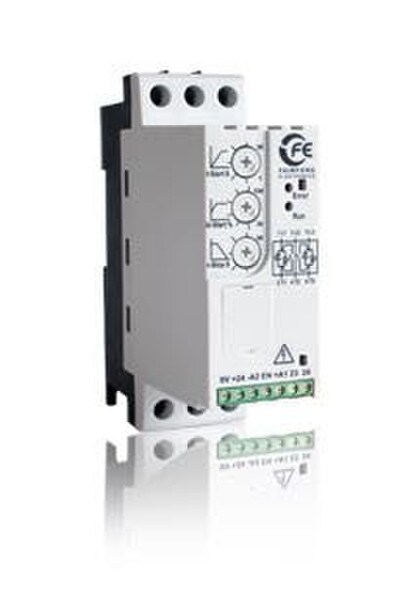

Fairford Electronics PFE-04 Soft Start for a 230/400V 3 Ph motor up to 3kW (4HP) at 7A.

Rated to suit motors and Trip Class Ratings:

Size 1: 45mm Wide x 120mm Deep x 140mm high. IP20.

Input Voltage: 230-460Vac 3 Phase +10% -15% at 50/60Hz ±2%.
Overload: 300% x 5 seconds at standard rating.
Starts per hour: 10 (or 5 starts + 5 soft stops) - Standard
Starts per hour: 60 (or 30 starts + 30 soft stops) - with optional fan
Start Time: 1-30s
Stop Time: 0-30s


Features include:

• Bypass Contactor.
• Pedestal Voltage: adjustable from 30% for standard rating to 100% for high breakaway loads.
• Requires 24V Control Supply - see linked products below.
• Wall mount in clean environment, onto symmetrical DIN rail or cubicle mount.
• Rated at 40C Ambient.

Full part number is PFE-04. Sometimes specified as PFE04, PFE-4 or PFE4.

Download the Fairford PFE Manual from the link below:-

• Fairford PFE Brochure
• Fairford PFE Installation Instructions
• Fairford Soft Starter Product Selection Guide
• Soft Starter Trip Class Guide
