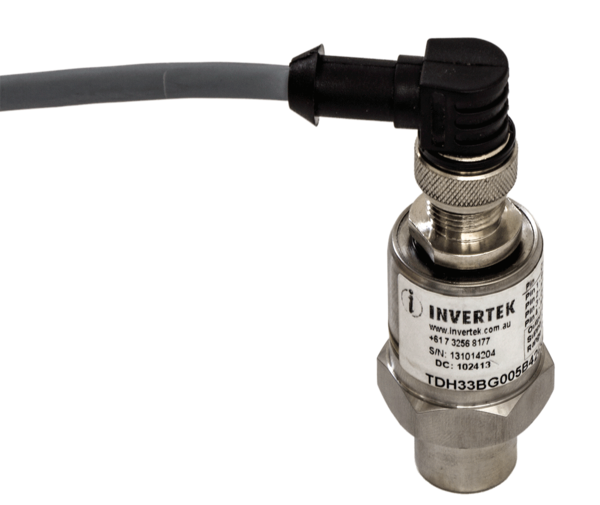

Pressure Transducer, 4-20mA, 24Vdc, . -1..9 Bar, 7/16-20 female with 45deg flare, valve depressor, M12

10 bar Pressure Transducer IDA33

• Low Cost
• -1-9 BAR Industrial Grade Pressure Transducer
• 1.5x Over Pressure
• 4-20mA Outputs
• all stainless steel wetted parts
• 1% Accuracy
• 7/16-20 SAE female with 45° flare and valve depressor
• 4-pin M12 connector
• Mating Cable Assembly Required:

Transducer Cables Page
