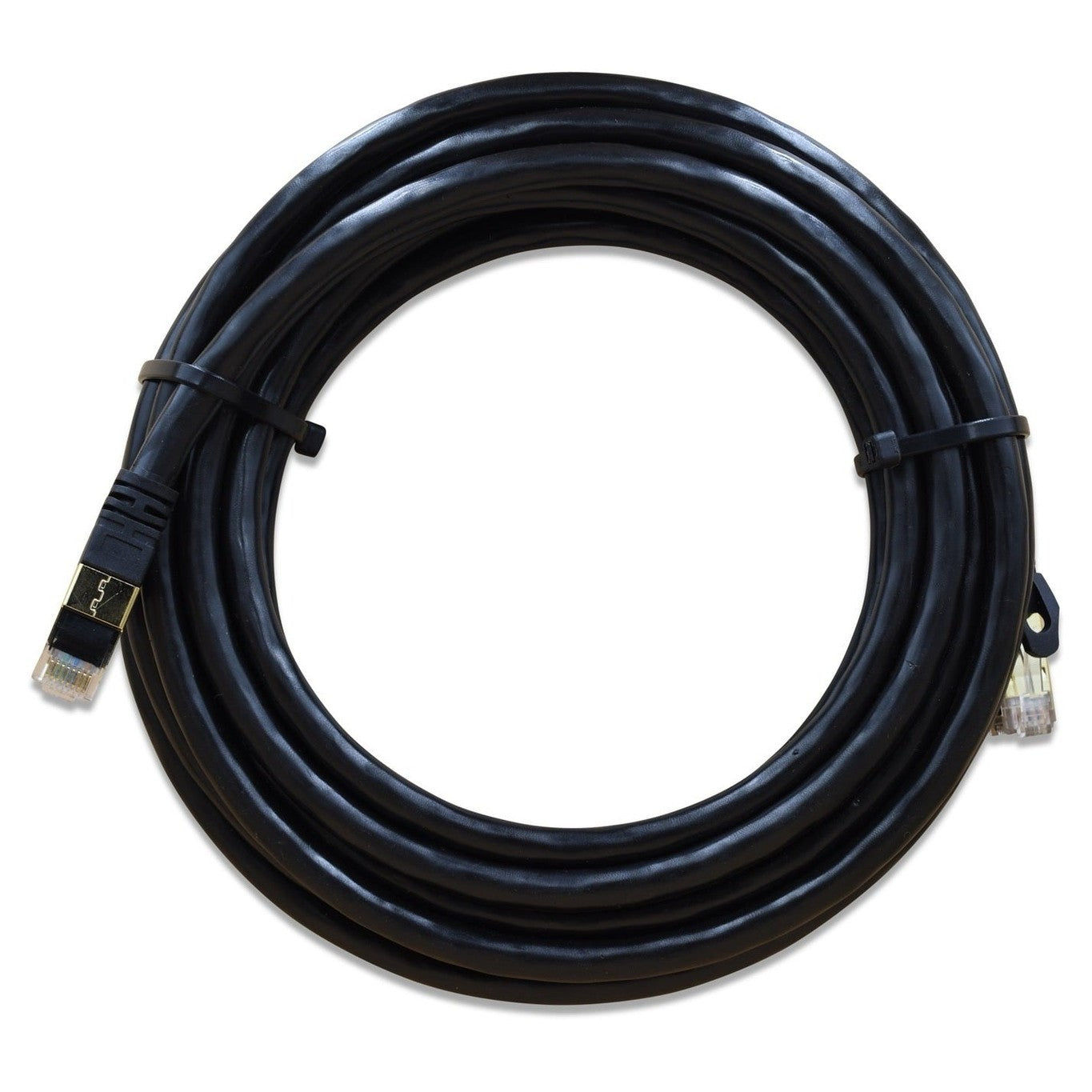

Cat6 Outdoor UV F/UTP 10m Ethernet Cable - ESD Shielded RJ45
Cat6 Outdoor UV F/UTP 10m Ethernet Cable - ESD Shielded RJ45
SKU:dw-C6-UV-10
WildCat 10m Cat6 Outdoor F/UTP Shielded Ethernet Cable
the Wildcat series was developed specifically for outdoor microwave and point to point/multipoint networking
It is the only compliant shielded Cat6 outdoor-rated cable available in Australia.
Key Features
Tough, thick black UV-stable outer jacket
1000BASE-T Certified Category 6
F/UTP foil shielded twisted pair
8P8C shielded RJ45 modular connectors
Anti-Crosstalk Divider
TIA/EIA 568-B Wiring
ESD drain for outdoor installations
Reduced EMI crosstalk and improved SNR.
Usage
Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 F/UTP Ethernet cables
Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (6.3mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments
Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.
Specifications / Frequency
|
Mechanical Specifications |
|
|
Standards |
YD/T 1019-2013, TIA-568-C.2 |
|
Cable Specifications |
4x2x0.56mm |
|
Conductor Material |
BC |
|
Conductor Diameter |
0.56mm (±0.005mm) |
|
Insulation Material |
HDPE |
|
Insulation Diameter |
1.00mm (±0.03mm) |
|
Shielding Material |
ALP |
|
Drain Wire Material |
CCA |
|
Drain Wire Diameter |
0.5mm |
|
Jacket Material |
PE |
|
Jacket Surface |
Smooth, Clean, Shiny |
|
Jacket Colour |
Black |
|
Jacket Thickness |
0.55mm (±0.05mm) |
|
Jacket Diameter |
6.3mm (±0.4mm) |
|
Electrical Specifications |
|
|
Minimum Single Bending Radius |
51mm |
|
1.0-100.0MHz Characteristic Impedance |
100±15 |
|
1.0-100.0MHz Delay Difference (20°C) |
<45ns/100m |
|
DC Resistance (20°C) |
7.00 |
|
Operating Temperature Range |
-20°C to +60°C |
