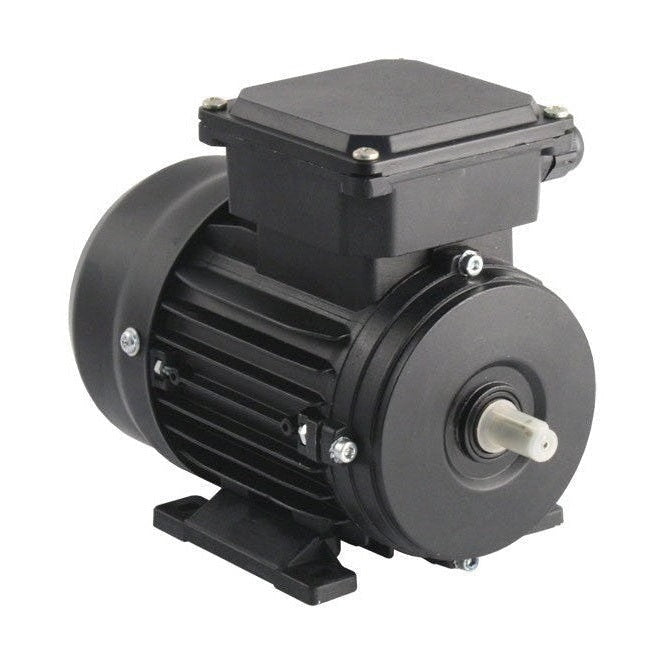

INVERTEK 18.5kW (25HP) 2 Pole AC Induction Motor 3ph 415V B3 Foot Mount - 160L2-42

INVERTEK Alloy 18.5kW 3ph 2 Pole, B3 Foot, 160L Frame AC Motor for 400V or 690V 3 phase supply.
Suitable for use with a Variable Frequency Inverter Drive having 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz/60Hz.

Rating: 18.5kW at 2940RPM, 400V or 690V Three Phase 50Hz.
Inverter Supply Output: 14:1 Speed Control range from 294RPM to 4116RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds

Full Load Current: 31.76A at 400V (DELTA) or 18.33A at 690V (STAR)
Power Factor: 0.91 when mains connected at 50Hz.
Efficiency: 92.4% at full load.
Full Load Torque: 60.09Nm

316mm Wide x 640mm Long x 404mm High (Including terminal box)
Foot mount on 15mm holes at 254mm wide x 210mm centres, 108mm back from the shaft shoulder
Shaft: 42mm dia x 110mm long with 12mm wide key
Removable Feet
Aluminium, IP55
Weight: 118kg.

Rated at 40C Ambient.
Cooling: IC411. Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
