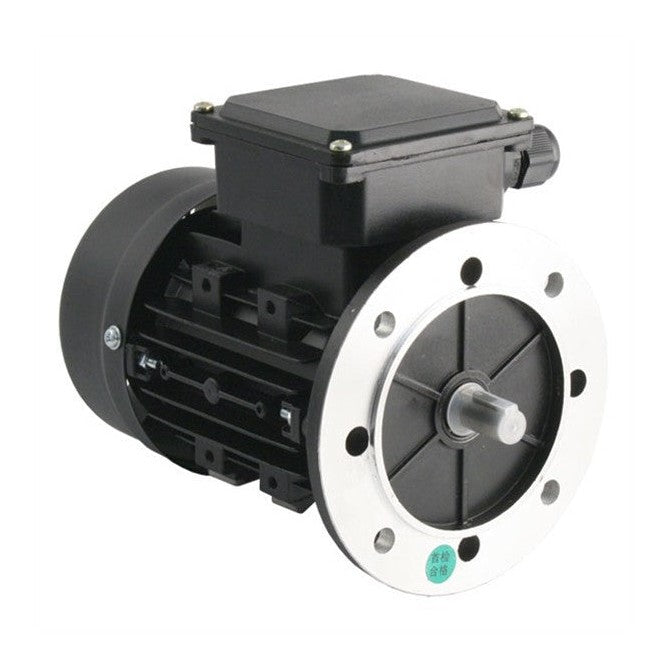

INVERTEK 90L Frame - 2.2kW (3HP) Single Phase Capacitor Run 2 Pole AC Motor for use at fixed Speed.
UUse with a fixed frequency 1ph input at 230V x 50Hz for 2.2kW x 2765RPM.
Rated Torque 7.60Nm Low Starting Torque 0.65 x Rated Torque Max Torque 1.8 x Rated Torque Rated Current 12.39A Starting Current 31.68A Efficiency 77%
Mounting is B5 Flange Mounting. Flange mount on 4 x 12mm holes at 165mm PCD with 130mm diameter spigot in the 200mm diameter flange. Shaft is 24mm dia x 50mm long with 8mm wide key. Weight is 17.8kg
Rated at 40C Ambient. Ventilation space required at rear cooling air intake.
