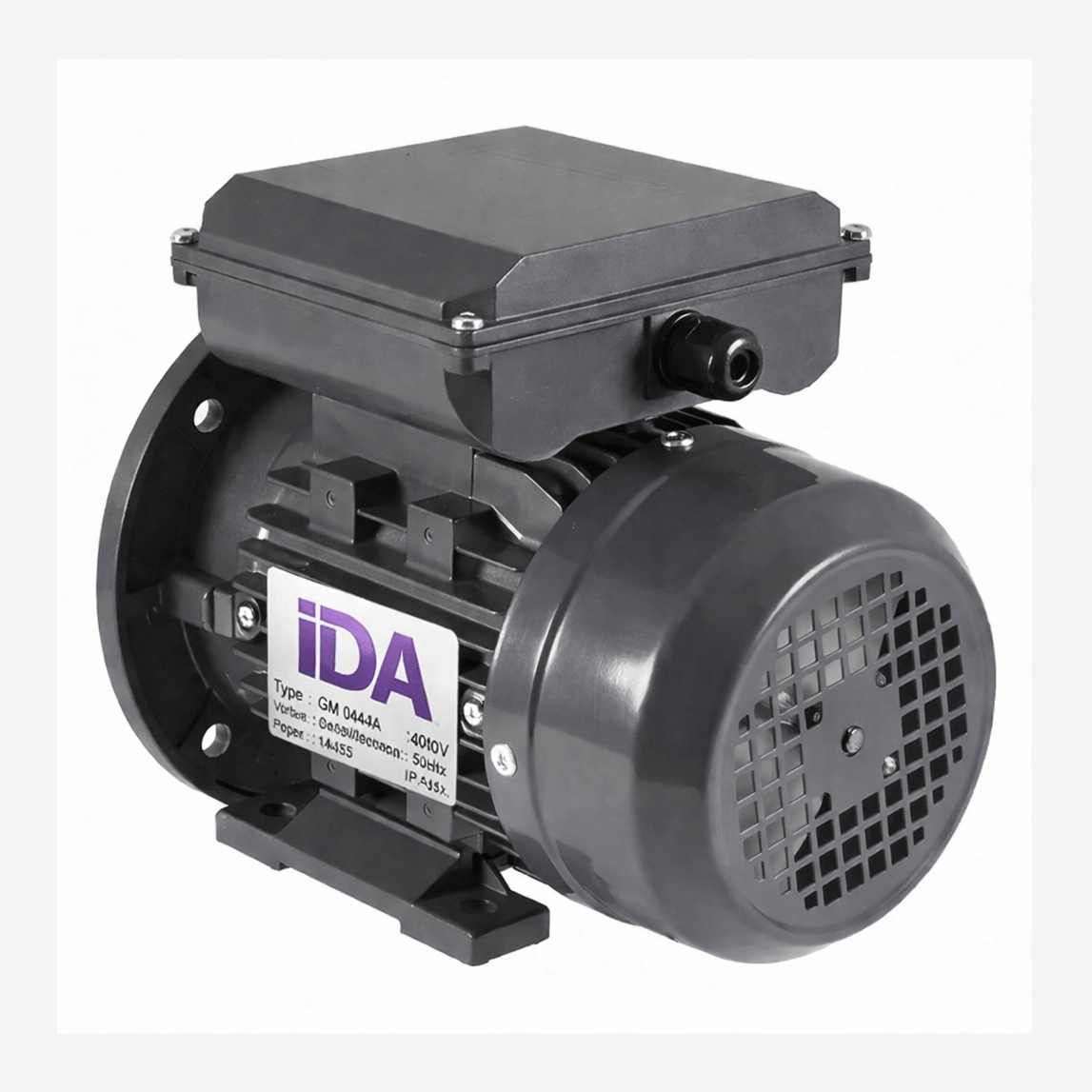

INVERTEK 80 Frame - 0.75kW (1HP) Single Phase Capacitor Start/Run 4 Pole AC Motor for use at fixed Speed.
Use with a fixed frequency 1ph input at 230V x 50Hz for 0.75kW x 1410RPM.
Full Load Current - 5.25A. Starting Current is 30A.

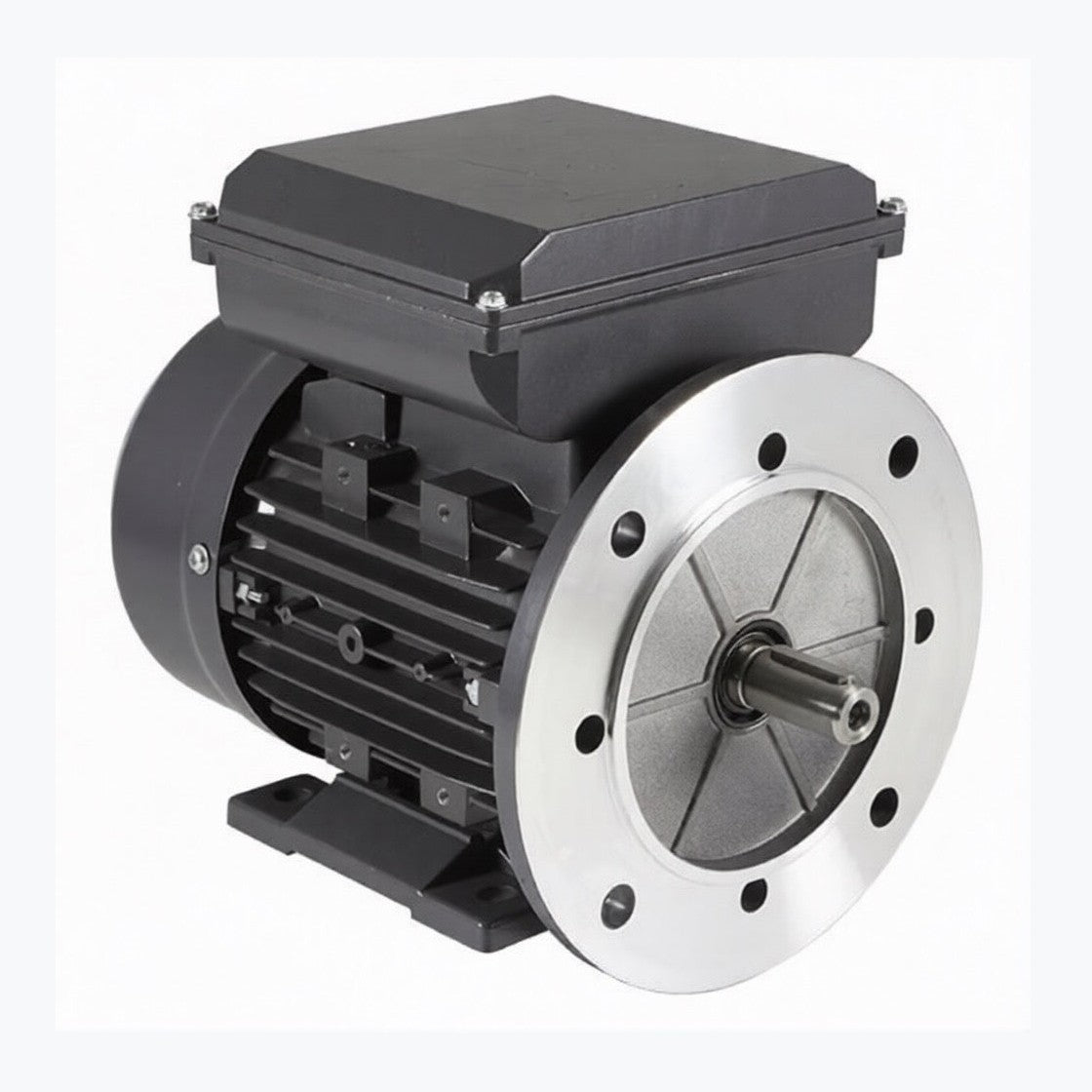

Mounting is B35 Foot and Flange Mounting. Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from shaft shoulder. Flange mount on 4 x 12mm holes at 165mm PCD with 130mm diameter spigot in the 200mm diameter flange. Shaft is 19mm dia x 40mm long with 6mm wide key. Weight is 10.9kg
Rated at 40°C Ambient. Ventilation space required at rear cooling air intake.
