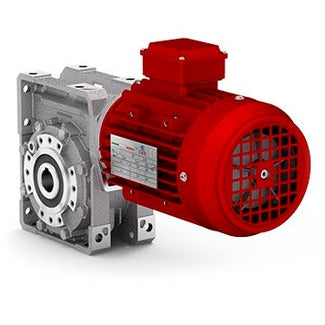

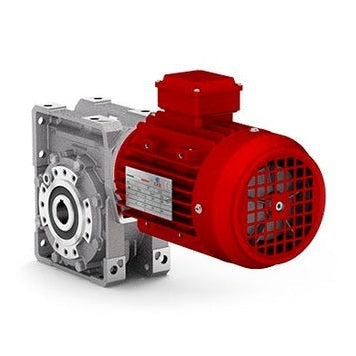

HYDROMEC Q75 Gear Motor R1/80 17.5RPM 0.55kW 230/400 Single Output Shaft

HYDROMEC Q75 Gear Motor R1/80 17.5RPM 0.55kW 230/400 Single Output Shaft

$3,999.00 AUD
$3,999.00 AUD
Sale Sold out

MQ75FB10CS-RB8ST

Type: M (With electric brake motor)
Size: Q75
Mounting: FB (Standard)


Ratio (i): 80,00
Input rpm: 1400
Motor power (P1M [kW]): 0,55
Output rpm (n2 [min-1]): 17,50
Output torque (M2M [Nm]): 177
Service factor (fs): 1,0
Nominal power (P1R [kW]): 0,56
Nominal torque (M2R [Nm]): 180
Dynamic efficiency (RD): 59%
Output shaft: C (ø30)
Output: S (Single output shaft)
Shaft position: R (Right)
Input size: -R (80 B14 ø120)
Brake Motor: BM (Brake motor)
Mounting pos.: B8 (B8)
Input bore: ST (Standard)
Terminal Box Position: B
