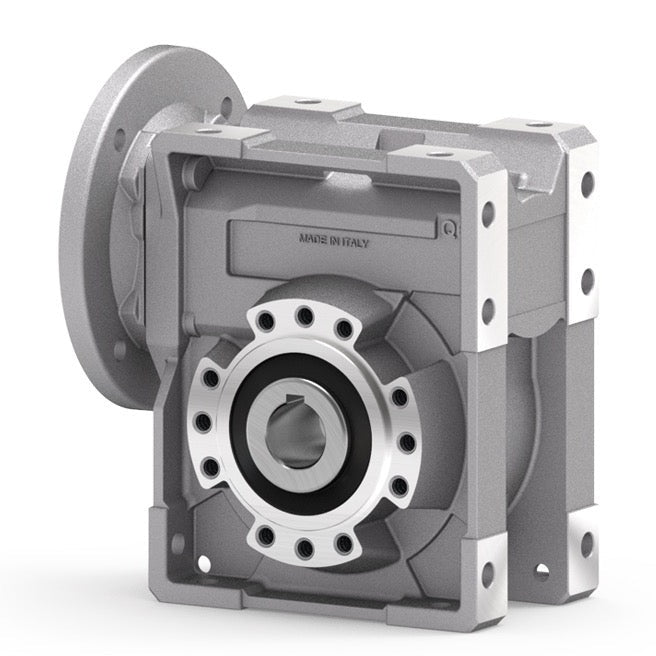

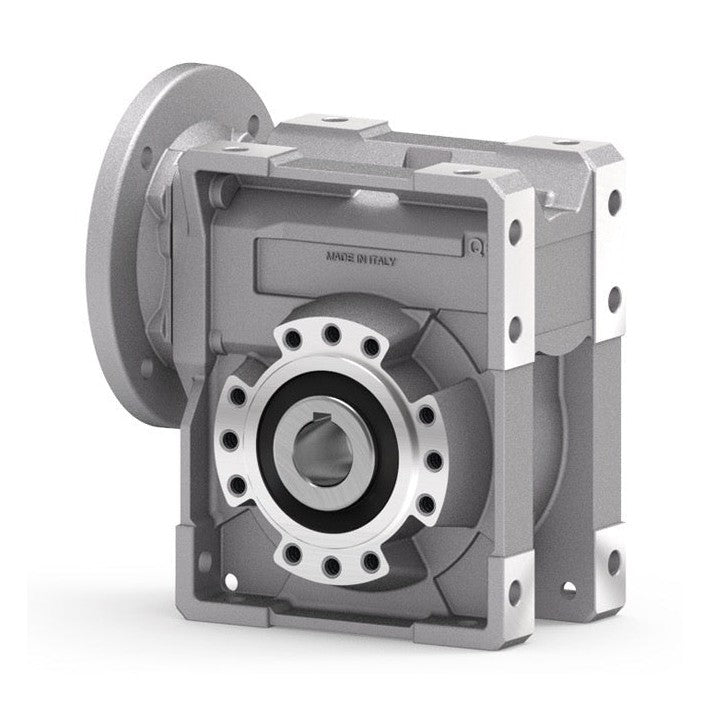

HYDROMEC Q63 Gear Box, R1/7 25mm Single Output Shaft, 90B14 INP. FL.

HYDROMEC Q63 Gear Box, R1/7 25mm Single Output Shaft, 90B14 INP. FL.

$2,469.00 AUD
$2,469.00 AUD
Sale Sold out

PQ63FB01CS-TB3ST

Type: P (With motor flange)
Size: Q63
Mounting: FB (Standard)


Ratio (i): 7,00
Input rpm: 1400
Motor power (P1M [kW]): 1,50
Output rpm (n2 [min-1]): 200,00
Output torque (M2M [Nm]): 59
Service factor (fs): 2,1
Nominal power (P1R [kW]): 3,20
Nominal torque (M2R [Nm]): 125
Dynamic efficiency (RD): 83%
Output shaft: C (ø25)
Output: S (Single output shaft)
Shaft position: L (Left)
Input size: -T (90 B14 ø140)

Mounting pos.: B3 (standard position)
Input bore: ST (Standard)
