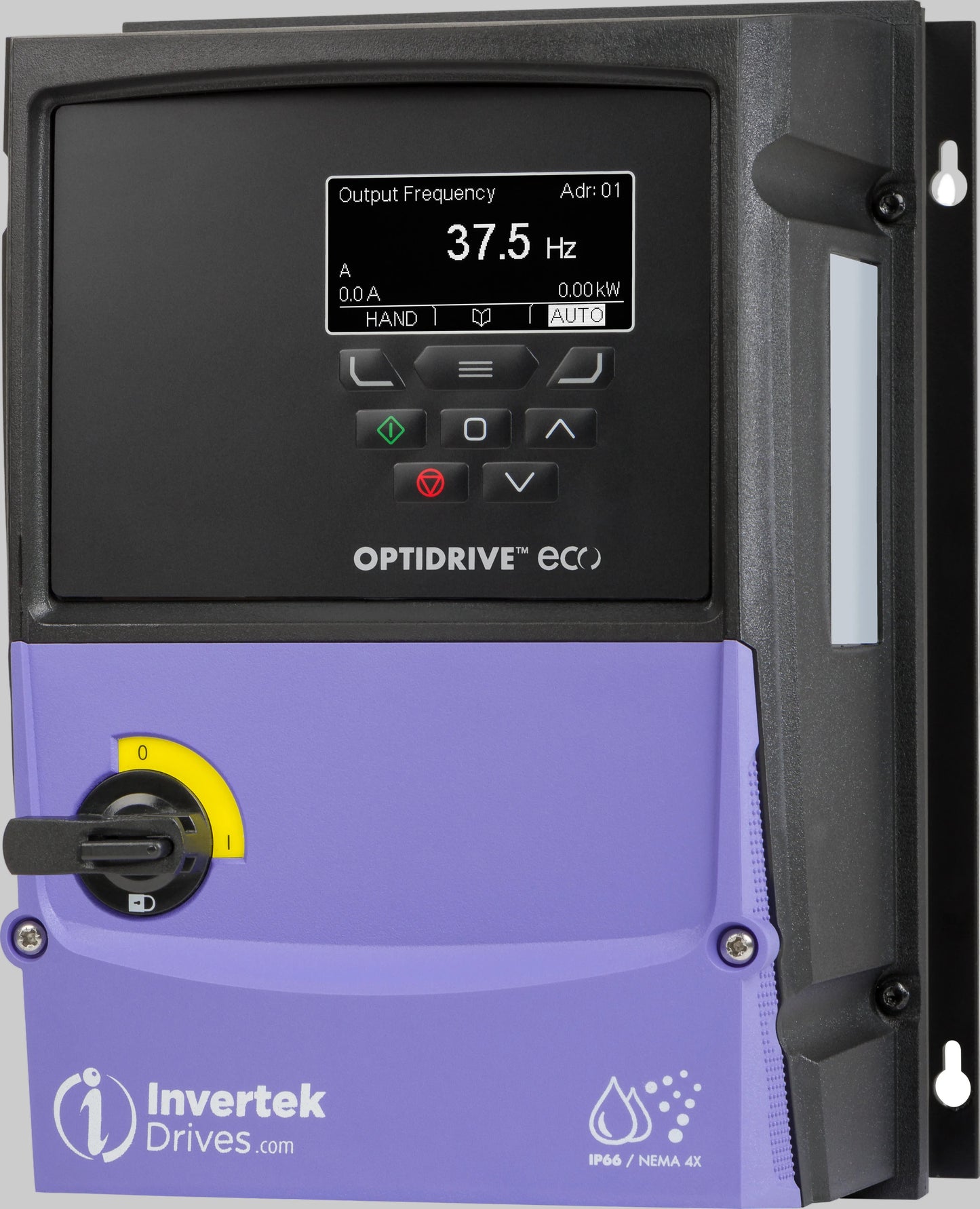

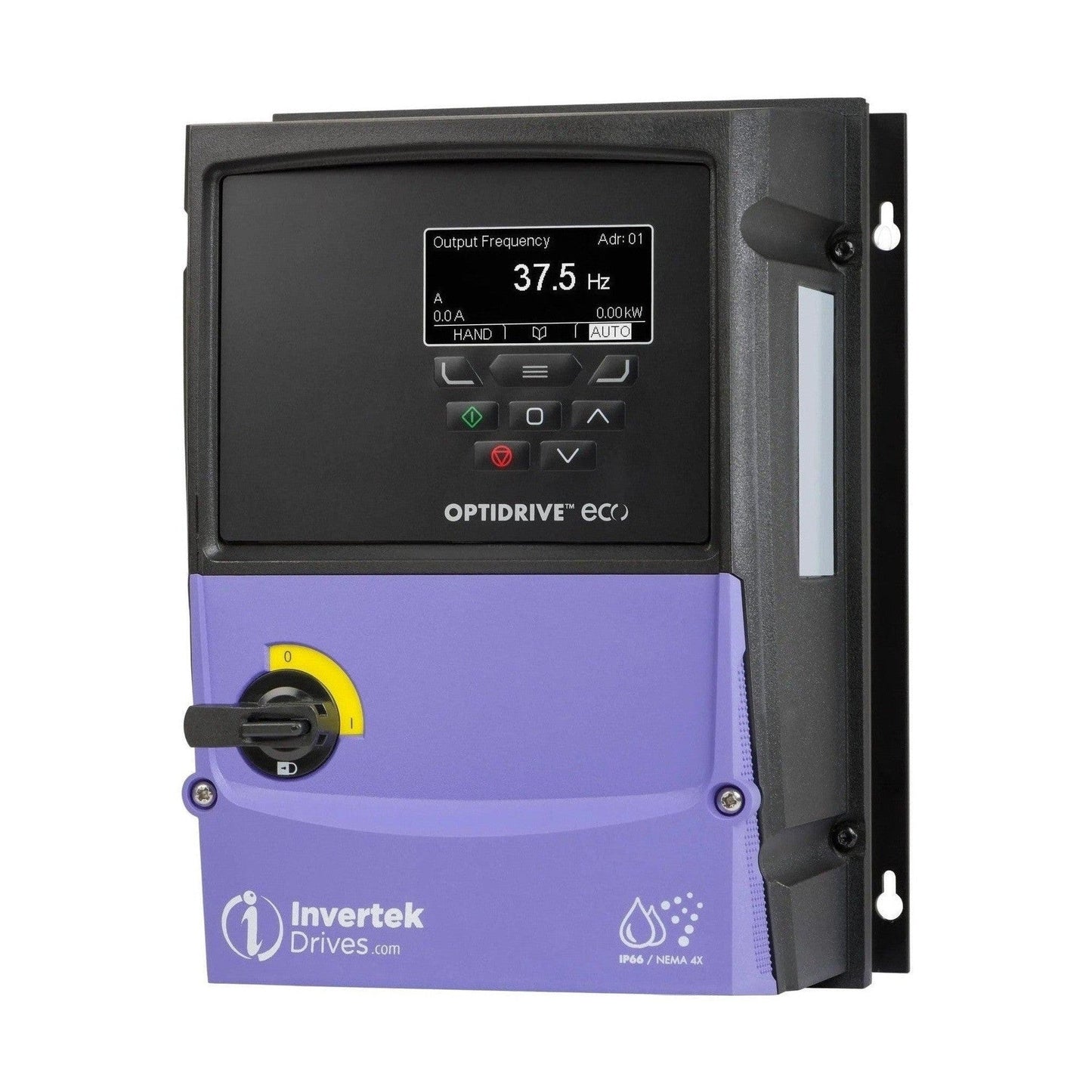

V3 IP66 2.2kW with Isolator, 1Ph. Input, 3Ph. Output, 200-240V, EMC Filter
V3 IP66 2.2kW with Isolator, 1Ph. Input, 3Ph. Output, 200-240V, EMC Filter
Regular price
$1,602.00 AUD
Regular price
Sale price
$1,602.00 AUD
SKU:V3-220105-1F1E-MN
2.2 kW (3 HP), 10.5 A, 200-240 V, 1-3PH
IP66 With Disconnect Outdoor Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 1 |
| Supply Current Continuous | 19.3 A |
| Supply Fuse or MCB (Type B) | 25 A |
Output Ratings
| Motor Output Rating | 2.2 kW (3 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 10.5 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP66 With Disconnect Outdoor |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 2 |
| Height | 257 mm (10.12 in) |
| Width | 188 mm (7.4 in) |
| Depth | 182 mm (7.17 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
i
| Height | 215 mm (8.46 in) |
| Width | 235 mm (9.25 in) |
| Depth | 375 mm (14.76 in) |
| Weight | 4.2 kg (9.26 lbs) |
Download the V3 Manuals from the links below:-
