RJ45 BacNet connector

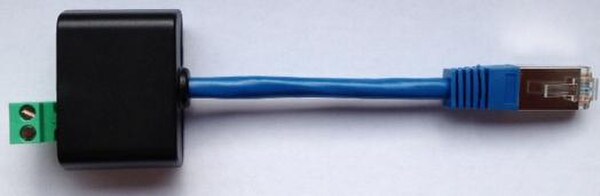

ODV-3 (ECO) BACnet Data cable splitter

The BACnet data cable splitter allows terminal block type connection of BACnet networks

The Optidrive ODV-3 (ECO) product can be connected to a BACnet communications network using the on-board RJ45 port, alternatively this BACnet Data Cable splitter can be used as an alternative method of network cable termination

The BACNet splitter also includes RJ45 port for connection of remote keypad options or further Optidrives.

For further details on BACnet operation and the ODV_2 (HVAC) product please refer to the Optidrive HVAC BACnet Drive User Guide

This Option is solely suitable for use on ODV-2 (HVAC) an ODV-3 (ECO) Drives

Part No. - OPT-2-BNTSP-IN or OPT-3-BNTSP-IN

Note : The splitter can also be used for Modbus network connection
