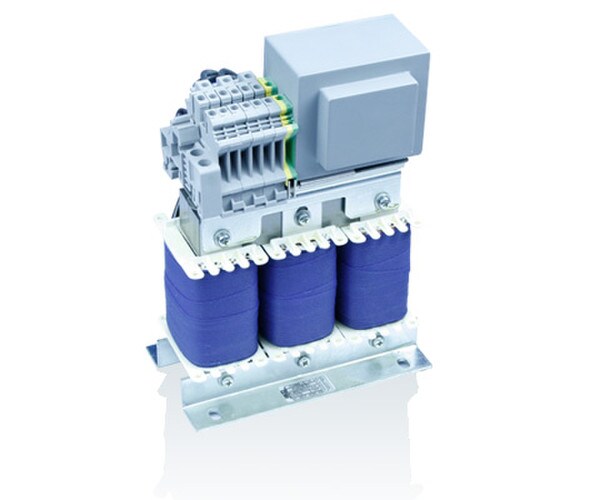

Sinusoidal Filter 320A 500V 3 Line

Three Phase Output Sine Filter for Inverter Drive to 320A.

Rating:
320A maximum continuous (linear upto 384A)
Working Frequency: 0/60Hz
500V Three phase (confirmed drawing incorrect)
Suitable for Inverter switching frequencies from 3kHz to 4kHz.
Terminal lugs Copper 300 x 47mm
IP00 enclosure rating
Dimensions 480mm Long by 450mm High by 355mm deep
Mounted on 4 off slots 13 x 20mm M10 spaced at 356 x 185mm

The three main reasons to use this product are:
1) Output choke/sine wave filter for cleaning up the sine wave and reducing common mode noise.
2) It also allows the installation of long cable runs, up to 600m. Cable run is the accumulated actual cable length, connected to the Inverter output terminals feeding single or multiple motors.
3) This product reduces peak Voltages applied at the motor for old or vulnerable motors.
