3.4A 4Q 115V/230V 1ph AC to DC Isolated Signals

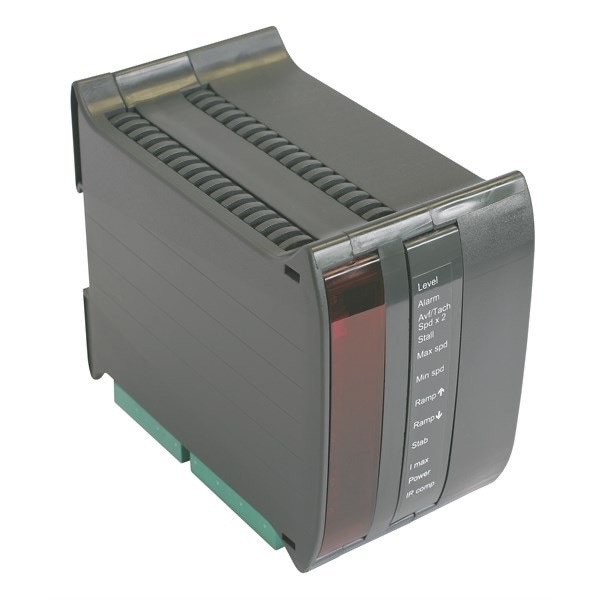

Sprint Electric 340XRi - 3.4A Four Quadrant (Regenerative) Isolated DC Thyristor Drive for motor speed and torque control.
230V AC supply - 0.55kW (0.74HP) at 180V DC .
110V AC supply - 0.25kW (0.34HP) at 90V DC.
(Extra Low voltage variants are available see links below)

Size: 60mm Wide x 120mm Deep x 105mm High. IP21
Weight: 0.52kg

Adjustments:-
Max & Min Speed
Ramp Time
Maximum Current
Stability
Switch selectable Tach or Armature voltage feedback
Adjustable IR compensation for improved AVF speed regulation
Selectable dual voltage ac supply
Aux speed trim input available in AVF mode
Signal level comparitor

Input Current: 3.4A to 5.1A (depending on motor inductance).
Input Voltage: 110 or 230V single phase +-10% at 50/60Hz.
Field Rating: 1A @ 90% input voltage (For half wave field volts 45% input voltage, connect field to F- and N)
Armature Form Factor: Typical form factor 1.5 (load dependant).
Stall protection @ 150% included

Wall mount in clean environment or cubicle mount.
Rated at -10° to 40°C Ambient.
Ventilation space above and below: 25mm, Ventilation space at sides: 0mm.
Heat Loss at Max output: 17W.
Mounting via Symmetrical DIN rail.

Manufacturer part number is 340XRi.
