4A 1Q 115V/230V 1ph AC to DC Enclosed

Sprint 400ER - 4A Single Quadrant Reversing DC Thyristor Drive for 230 or 110V single phase AC input.
230V AC supply - 0.55kW (0.75HP) at 180V DC for motor speed and torque control.
110V AC supply - 0.25kW (0.37HP) at 90V DC.
Simple to set-up in analogue form.

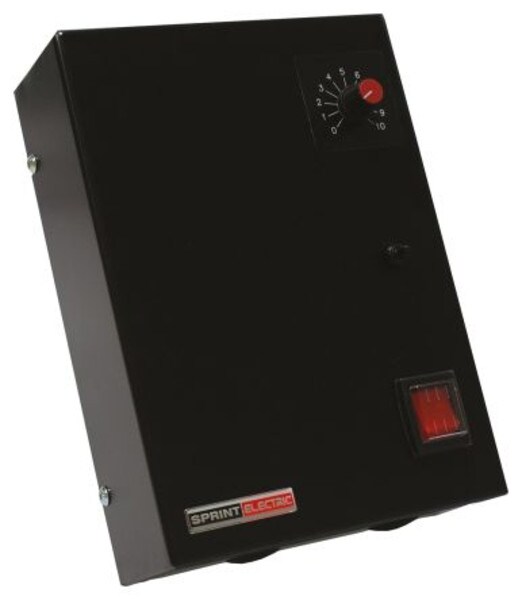

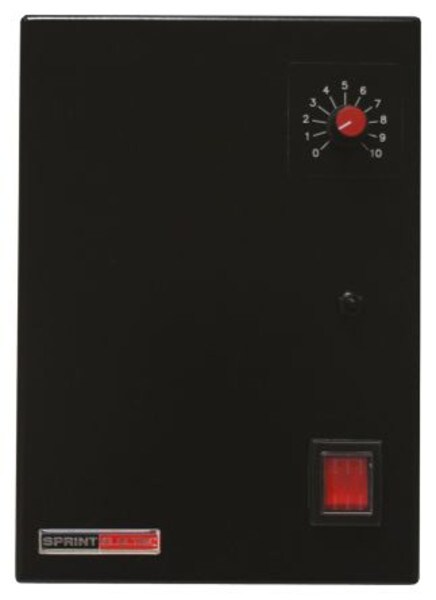

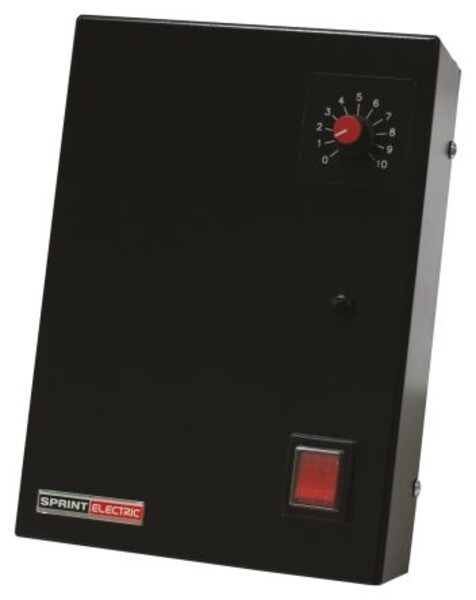

Aluminium Enclosure: 175mm Wide x 100mm Deep x 250mm High.

Controls Include...
•On/Off AC supply rocker switch
•Set speed potentiometer
•AC supply fuse
•Toggle switch for forward, stop and reverse.

Features...
Fully fused
Zero speed interlocked reversing
Dynamic braking

Full part number is - 400ER
