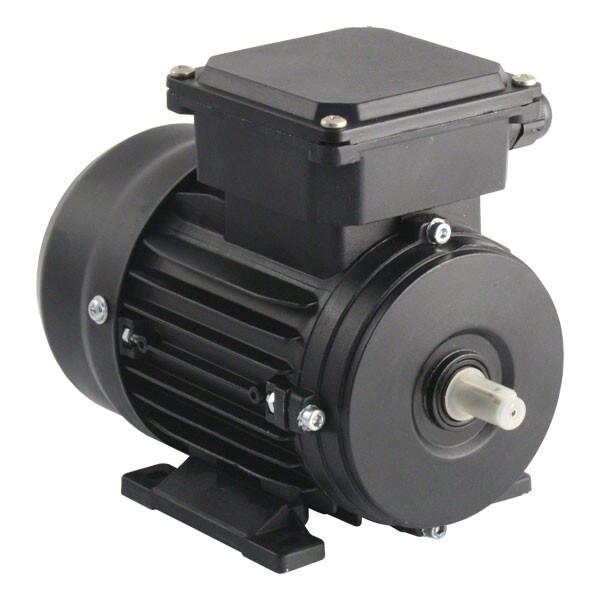

1,1kW (1,5HP) 2 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 80/19

Fixed mains supply output: 1.1kW (1.5HP) x 2850RPM at 240V or 415V x 50Hz 3ph.
Inverter Supply Output: 14:1 Speed Control range from 285RPM to 3990RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 4.2A at 240V, or 2.4A at 415V.
Power Factor is 0.82 when mains connected at 50Hz.
Efficiency is 80%

160mm Wide x 290mm Long x 213mm high overall in its IP55 enclosure.
Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from the shaft shoulder.
Shaft is 19mm dia x 40mm with 6mm wide key.
Weight is 8.9kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - M32001103IMA

For the Technical:-
Part Time Output when Inverter powered is...
2.63Nm - 1.1kW ( 1.47HP) x 3990 RPM at 70 Hz
3.69Nm - 1.1kW ( 1.47HP) x 2850 RPM at 50 Hz
3.69Nm -0.55kW ( 0.74HP) x 1425 RPM at 25 Hz
3.69Nm - 0.11kW ( 0.15HP) x 285 RPM at 5 Hz
Continuous Output when Inverter powered is...
2.63Nm - 1.1kW ( 1.47HP) x 3990 RPM at 70 Hz
3.69Nm - 1.1kW ( 1.47HP) x 2850 RPM at 50 Hz
3.13Nm - 0.47kW ( 0.63HP) x 1425 RPM at 25 Hz
1.84Nm - 0.055kW ( 0.07HP) x 285 RPM at 5 Hz
