12A, 1-ph, 120V/230V, Enclosed, Non-Regen, Non-Reversing, Non-Isolated DC Drive

Single Phase DC Systems Drives

Non-isolated, non-reversing, non-regenerative single phase DC drive.

Must not be connected to other controllers without signal isolation being added, consider using isolated drive for systems applications.

1200E Key Features:

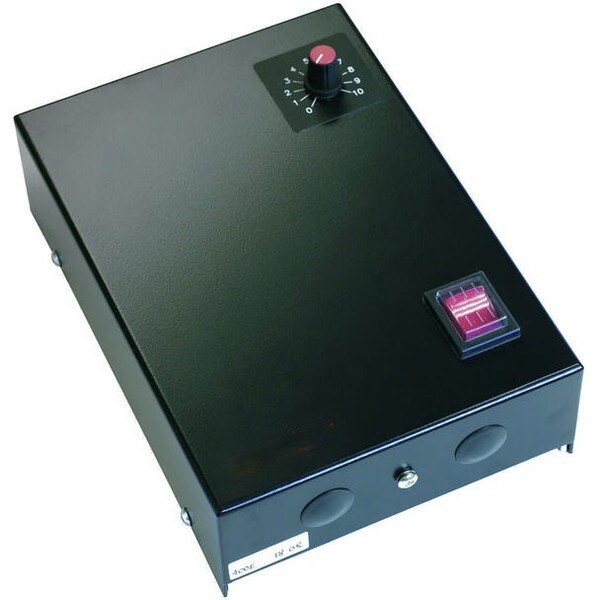

• Enclosed
• Fitted with set speed potentiometer and power isolator switch
• For DC motors rated up to 12 Amps
• International dual voltage supply compatibility (100-130VAC and 200-264VAC)
• Single Quadrant operation
• Extra 50% peak torque for rapid acceleration or shock loads
• User adjustable:
  • Acceleration
  • Deceleration
  • Max motor speed
  • Min motor speed
  • IR comp
  • Stability
  • Max motor current
• Torque control input for basic winding or tension control, with overspeed limiting
• Many additional input and output signals
• Switch selectable Tach or armature voltage feedback
• 4-20mA and 0-20mA loop input option as standard
• Easily interfaced with armature reversing module
• Adjustable Stability control for optimum motor response
• Integral AC supply fuse
• Ultra stable potentiometer reference for optimum long term speed and torque stability
• Output signals for easy display of motor speed and load
• Zero reference interlock facility
• Adjustable IR compensation for improved AVF speed regulation
• Switch selectable feedback calibration – no component changes
• Precision tach rectifier
• Zero speed signal output
• Motor overload output
• Identical footprint for 8 or 12 Amp output
• Remote stop/start input
• Features micro analog processor
• Pushbutton input for electronic control of motor stop/start
• Compact size, saves panel space and makes for easy retrofitting
