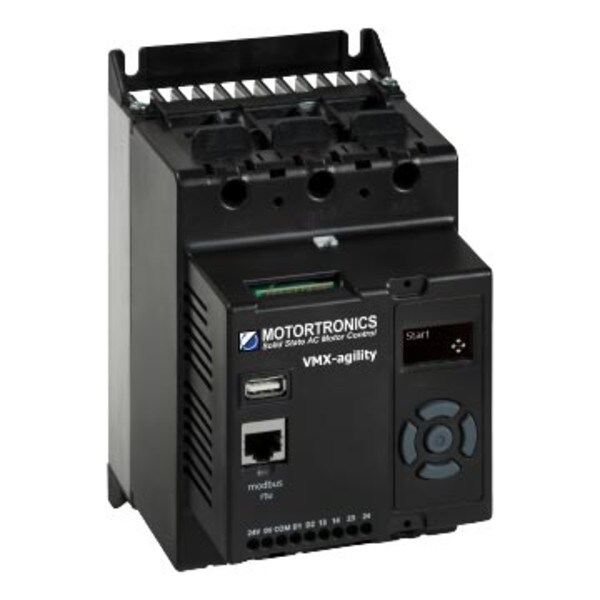

Motortronics Agility Series Soft Starter suitable for starting standard three phase induction motors to 37kW (50HP) at 66A

Rated to suit motors and Trip Class Ratings:

11kW, 41A at 230V - Trip Class 30, 15kW, 55A at 230V - Trip Class 20, 18.5kW, 66A at 230V - Trip Class 10.
22kW, 41A at 400V - Trip Class 30. 30kW, 55A at 400V - Trip Class 20, 37kW, 66A at 400V - Trip Class 10.
22kW, 41A at 500V - Trip Class 30. 37kW, 55A at 500V - Trip Class 20, 45kW, 66A at 500V - Trip Class 10.

Up to 5 starts per hour as standard:

Up to 40 starts per hour if optional fan AGY-030 is fitted.

Main Circuit IP00 (IP20 with optional finger guard). Control Circuit IP20.

Frame 1
Dimensions: 165mm high x 108mm wide x 148mm deep.
Weight: 1.97kg.

Features include:

Integrated Keypad with Display.
2 x Digital Inputs (24Vdc or 110Vac or 230Vac +/-10% voltage dependent voltage applied to D1-2 Com terminals)
1 x Run Relay, 1 x Fault Relay.
USB terminal for firmware upgrades and data logging.
RJ45 Socket for Modbus RTU communications.

Input Voltage:

200Vac to 600Vac, at 50/60Hz +/- 10%
Recommended fuses can be found in the Quick Start Guide
Aux supply options: Requires optional power supply AGY-020 for Single Phase 110V or 230V ac rms.

Cubicle mount:

Ventilation space above and below: 75mm
Ventilation space at sides: 25mm (each side)
Ventilation space in front: 25mm
Mounting via 4 bolts at rear on 165mm x 90mm centres.
Operating Temp: -20°C to 40°C. Above 40°C derate linearly by 2% per °C to a maximum of 60°C
Heat loss: 30W.

Manufacturer part number is VMX-AGY-113-6-01 (was AGY-113-6-01)
