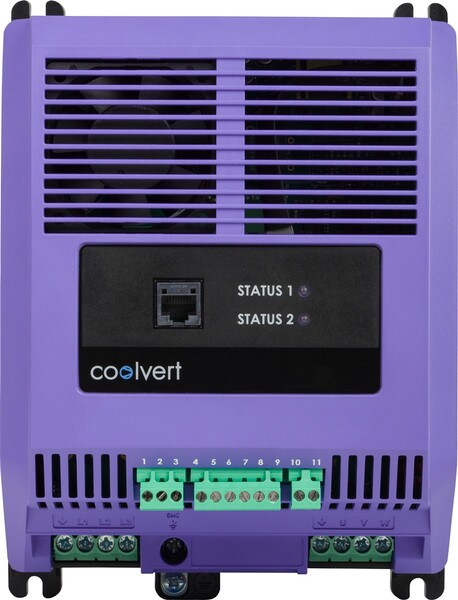

COOLVERT 30A 400V COOL-PLATE
Details
+
Details
+
Model Data
| kW | HP | Amps | Size | Model Code | Product Family | Frame Size | Voltage Code | Power Rating Code | Number of Input Phases | EMC Filter | Heatsink/Coldplate | Power Technology | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 – 240V ± 10% 1 Phase Input | 1.5 | 2 | 7.0 | 2 | CV | - | 2 | 2 | 0070 | - | 1 | F | # | P | |||
| 3 | 4 | 12 | 2 | CV | - | 2 | 2 | 0012 | - | 1 | F | # | P | ||||
| 380 – 480V ± 10% 3 Phase Input | 5.5 | 7.5 | 14 | 2 | CV | - | 2 | 4 | 0140 | - | 3 | F | # | E | |||
| 7.5 | 10 | 18 | 2 | CV | - | 2 | 4 | 0180 | - | 3 | F | # | E | ||||
| 11 | 15 | 24 | 2 | CV | - | 2 | 4 | 0240 | - | 3 | F | # | E |
Options for comissioning & diagnostics
Optistick Smart
Rapid Commissioning Tool
- Copying, backup and restore of drive parameters
- Bluetooth interface to a PC running OptiTools Studio or the OptiTools Mobile app on a smartphone
- Onboard NFC (Near Field Communication) for rapid data transfer
Technical Specifications
| Input Ratings | Supply Voltage | 200 – 240V ± 10% 380 – 480V ± 10% |
| Supply Frequency | 48 – 62Hz | |
| Displacement Power Factor | > 0.98 | |
| Phase Imbalance | 3% Maximum allowed | |
| Inrush Current | < rated current | |
| Power Cycles | 120 per hour evenly spaced |
| Output Ratings | Output Power | 200V: 1.5 – 3.0kW 400V: 5.5 – 11kW |
| Overload Capacity | 30% rated current for 10s | |
| Output Frequency | 0 – 500Hz | |
| Acceleration Time | 0.01 – 600 seconds | |
| Deceleration Time | 0.01 – 600 seconds | |
| Typical Efficiency | > 98% |
| Ambient Conditions | Temperature | Storage: −40 to 70°C Operating: −20 to 60°C |
| Altitude | Up to 1000m ASL without derating Up to 2000m maximum UL approved Up to 4000m maximum (non UL) | |
| Humidity | 95% Max, non condensing | |
| Vibration | Conforms to EN61800-5-1 |
| Enclosure | Ingress Protection | Front IP20 Rear (Through Panel Mounting) IP55 |
| Coated PCBs | Designed for operation in 3S2/3C2 environments according to IEC 60721-3-3 |
| Programming | Modbus RTU (RS485) | Modbus RTU on Pluggable terminals and through RJ45 port |
| PC Tools | PC Tools software for Diagnostics and parameter configuration (RJ45 port only) | |
| Keypad | Optional Remote Keypad with TFT display for diagnostic and programming | |
| Smartphone app | Optitools Mobile |
| Control Specification | Control Method | 200 – 240V ± 10% 380 – 480V ± 10% |
| PWM Frequency | 4 – 32kHz | |
| Stopping Mode | Ramp to stop, Coast to stop | |
| Skip Frequency | 2 skip frequencies, user adjustable | |
| Control Modes | Modbus RTU (RS485) Terminal Control Digital / Analogue Terminal Control PI mode Master / Slave Mode |
| Safe Torque Off (STO) | IEC 61800-5-2:2016 | SIL 3 |
| EN ISO 13849-1:2015 | PL “e” | |
| EN 61508 (Part 1 to 7): 2010 | SIL 3 | |
| EN 60204-1: 2006 & A1: 2009 | Cat 0 | |
| EN 62061: 2005 & A2: 2015 | SIL CL 3 | |
| Independent Approval | TUV Rheinland* |
| Application Features | PI Control | Internal PI Controller |
| Intelligent Drive Thermal Management | Reduced-load operation of the system can be configured under high drive temperatures to prevent nuisance tripping | |
| Intelligent Motor Thermal Management | Reduced-load operation of the system can be configured under continued motor overload to prevent nuisance tripping | |
| Serial Communications-Loss Fall-Back Speed | The ability to configure the drive to run at a ‘safe’ speed in the even of a loss of serial communication. Can prevent total loss of operation whilst maintaining minimum process demands. | |
| Master Follower Configuration | The ability to run a cascade of machines with one Master regulating the operating point in PI Control |
| Maintenance & Diagnostics | Fault Memory | Last 3 trips stored with time stamp |
| Data Logging | Logging of data prior to trip for diagnostic purposes: Output Current Drive Temperature DC Bus Voltage | |
| Monitoring | Hours Run Meter kWH |
| Conformance | The Coolvert product range conforms to the relevant safety provisions of the following council directives: 2014/30/EU (EMC), 2014/35/EU (LVD), 2006/42/EC (Machinery Directive), 2011/65/EU (RoHS 2) and 2009/125/EC (Eco-design) | |
| Design and manufacture is in accordance with the following harmonised European standards: | ||
| BSEN 61800-5-1: 2007 & A1: 2017 | Adjustable speed electrical power drive systems. Safety requirements. Electrical, thermal and energy. | |
| BSEN 61800-3:2018 | Adjustable speed electrical power drive systems. Part 3: EMC requirements and specific test methods (IEC 61800-3:2017). | |
| BSEN 61800-9-2:2017 | Adjustable speed electrical power drive systems. Part 9-2: Ecodesign for power drive systems, motor starters, power electronics and their driven applications – Energy efficiency indicators for power drive systems and motor starters (IEC 61800-9-2:2017). | |
| BSEN 60529: 1992 & A2: 2013 | Specifications for degrees of protection provided by enclosures | |
| UL 61800-5-1 | cUL Listed * cUR Recognised for the coldplate variants * | |
| BSEN 61000-3-12: 2011 | Electromagnetic compatibility (EMC) - Part 3-12: Limits - Limits for harmonic currents produced by equipment connected to public low voltage systems with input current >16 A and ≤ 75 A per phase | |
| BSEN 61000-3-2:2019 (single phase input variants only) | Electromagnetic compatibility (EMC).Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase) | |
*Pending
Dimensions
Heatsink Version (dimensions in mm)
NOTE: The Heatsink Version can be conventionally mounted on the backplate of a panel using the optional panel mounting kit (sold separately)
Coldplate Version (dimensions in mm)
Model Code Guide
Connection Diagram
