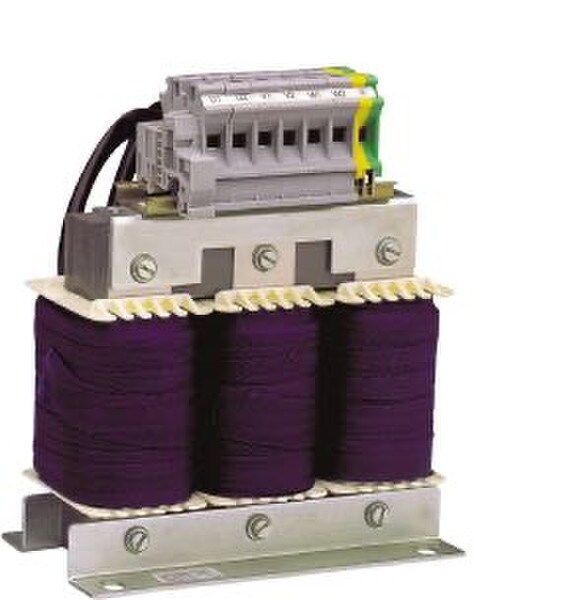

Input Choke; 25A, 400V 3ph, IP20

Three Phase AC Input Choke to 25A.
Connect directly to the mains input of a 3ph AC Inverter to reduce harmonic current or RMS load.

Current Rating: 25A.
Voltage: 500V 3 phase +-10%.
Inductance: 1.2mH.
Protection: IP20.
Weight: 5.7kg.

Dimensions: 155mm Length x 77mm Width x 185mm Height.
Mounting: via 8mm x 12mm slots at 130mm x 72mm centres.
Connections: Top mounted terminals suitable for up to 10mm² cable.

Part Number:  CNW903/25.

Also known as: Mains Choke, Line Reactor, AC Choke, AC Inductor or Input Choke.
