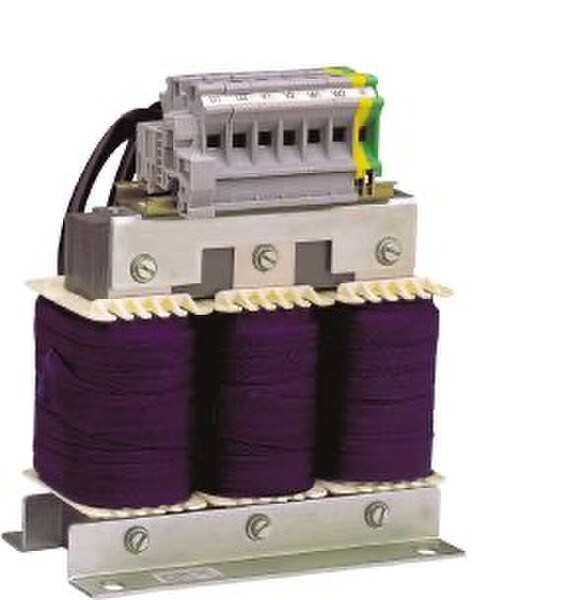

Input Choke; 36A, 400V 3ph, IP20

Three Phase AC Line Reactor to 36A.
Connect directly to the mains input of a 400V 3ph AC Inverter to reduce harmonic current or RMS load.

Current Rating: 36A.
Voltage: up to500V 3 phase ±10%.
Inductance per phase: 0.81mH.
Protection: IP20.
Weight: 7.2kg.

Dimensions: 190mm Length x 82mm Width x 205mm Height.
Mounting: via 8mm x 12mm slots at 170mm x 58mm centres.
Connections: Top mounted screw terminals suitable for cable up to 10mm².

Part Number:  CNW903/36.

Also known as: Mains Choke, Line Reactor, AC Choke, AC Inductor or Input Choke.
